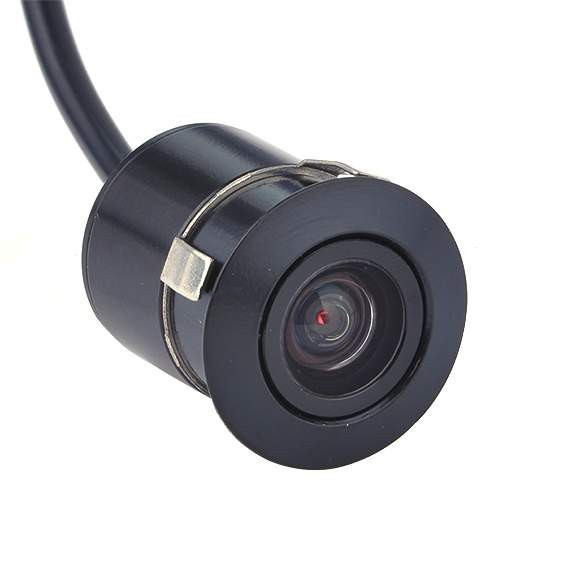

The super small camera with a massive impression. With just a width of 16.5mm this is very discreet. With CCD colour and offering a HD resolution this will be a perfect addition for your in car setup. This universal reversing camera designed to be used on any 12v vehicle. The clever design allows for it to be discretely mounted at the rear of any vehicle (normally next to the rear number plate lights). Once the camera has been installed it will automatically power on as soon as the vehicle is put into reverse delivering a video signal to any monitor.
KEY ATTRIBUTES:
- Universal Fitment - Super Small At Only 16.5mm Diameter
- Automotive Imaging For Safe & Easy Driving
- 170 Degree Wide Angle View
- CCD Camera
- Reversing Guard Line Function
- 6m Length RCA Video Cable
- Portable, Waterproof & Anti shock
- Anti High Temperature & Humidity
- Easy To Install
- Image Sensor: PC3030
- Video System: PAL/NTSC
- Effective Pixels: 728x628
- Resolution: 420 TV lines
- Electronic Shutter: 1/80sec
- Scanning System: 2:1 Interlace
- Sync System: Internal
- Lens Angle: 2.8mm/120°-1.8mm/170°
- Sensor Area: 5.961mmx4.276mm
- Video Output: 1.0Vp-p,750hm
- S/N Ratio: More than 48db
- Water-proof: IP67-IP68
- Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)
- Current Consumpition: No More 300mA
- Power Supply: DC12V±10%
- Operation Temperature: -20℃-60℃（RH95%Max.)
- Storage Temperature: -30℃-60℃（RH95%Max.)
- Other Items: Auto Matic white balance,AGC and BLC
IMPORTANT INFORMATION: The camera is only compatible with an aftermarket car head unit or monitor that will accept this cameras video signal. Please check to see that your head unit or monitor can accept a PAL or NTSC video signal. Your head unit or monitor will also require a CAM-In RCA phono connection. This item is classed as “universal fitment”. This means it has been designed to work universally with a range of vehicle applications but does not necessarily mean it will fit your application. We strongly recommend you check all the size information, product content and then inspect to see if it will be applicable to fit to your vehicle.
