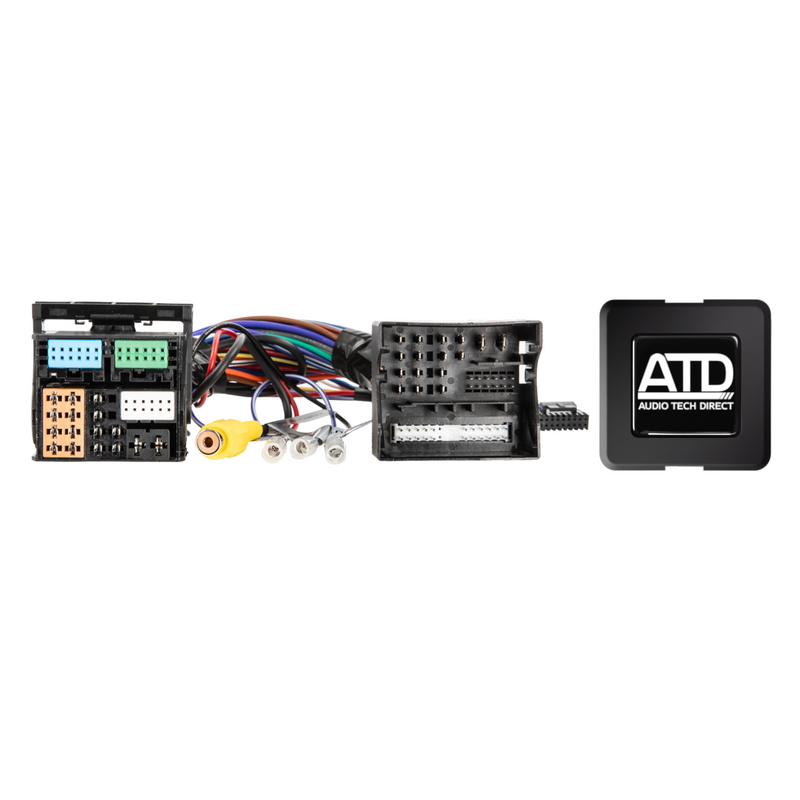

ATD CIK-27300 Reverse Camera Interface For VW Discover Media (6.33" All-in-One) MIB STD MQB

MAIN FEATURES

Audio Tech Direct now offers a range of cable adaptors to allow an after-market camera to be connected to the OEM factory radio. These are a great way of adding some much needed parking assistance to your factory radio. Please read the listing description carefully as coding and variants with the factory radio may apply.

This is a plug-and-play "T" Harness that allows you to easily add a back-up camera (when your vehicle did not come with a OEM backup camera) to select OEM systems while retaining factory settings. Ditch the wires and discover the simplicity of true plug-and-play. Disconnect the factory connector and connect our T-Harness inline.

Note, NOT compatible with 1K8035150_ head unit models. The head unit model number can be found by accessing the info/about menu on the head unit. Will work with most Composition Media head units, but there are some that do not accept a camera input at all. NOT compatible with the following model numbers XXX035820A, XXX035820, XXX035819A, XXX035819 or XXX035812. The head unit model number can be found by accessing the info/about menu on the head unit to check before purchase.

Features & Benefits:

• Adapter harness to add a reverse camera to an original Volkswagen radio screen
• This harness has a built in interface to give ignition power and a reverse feed to the camera
• Note, camera input function needs to be CODED to the car by a VW dealer or a specialist engineer with VCDS
• Rear-view camera input (NTSC cameras only)
• Automatic switchover to retrofit rear-view camera input when reverse gear is engaged (vehicle coding required)
• CAMERAS NOT INCLUDED (Sold Separately)

VEHICLE COMPATIBILITY LIST

For vehicles with 6.5" & 8" MIB2 systems. Not for vehicles with 5F infotainment in the glove-box.

Vehicle fitment (guide only):

SEAT MODELS | vehicles with factory OPS, MIB/MIB2 High/Standard Navigation system Plus or Media System Plus 6.5 inch or 8 inch monitor

• Seat Alhambra [7N] (2016-2020) **Media System Plus, 1x SD slot vertically left or 1x SD slot each vertically left and right of the 6.33 inch monitor**
• Seat Arona (2018-2020)
• Seat Ateca [KH7] (2017-2020)
• Seat Ibiza [6P] (2016-2020)
• Seat Leon [MK3] [5F] (2013-2019)
• Seat Toledo [MK4] [KG] (2016-2020)

SKODA MODELS | vehicles with factory OPS, MIB/MIB2. High/Columbus and Standard/Bolero/Amundsen with 5.8 inch, 6.5 inch, 8 inch or 9.2 inch monitor

• Skoda Yeti [5L] (2015-2017) **vehicles with factory OPS. MIB STD2 PQ +/NAV Bolero/Amundsen, 1x SD slot vertically left or 1x SD slot each vertically left and right of the 6.33 inch monitor**
• Skoda Fabia [MK3] [NJ] (2014-2020)
• Skoda Karoq [NU7] (2018-2021)
• Skoda Kodiaq [NS7] (2017-2020)
• Skoda Octavia [MK3] [5E] (2013-2019)
• Skoda Rapid [NH1] (2016-2020)
• Skoda Superb [MK3] [3V] (2016-2020)

VOLKSWAGEN MODELS | vehicles with factory OPS, MIB STD2 PQ/+NAV, Composition Media/Discover Media, 1x SD Slot vertically left or 1x SD slot each vertically left and right and CD drive above the 6.33 inch monitor

• Volkswagen Amarok (2017-2021)
• Volkswagen Beetle (2015-2020)
• Volkswagen Caddy [MK4] (2016-2020)
• Volkwagen Scirocco [MK3 Facelift] (2016-2019)
• Volkswagen Sharan [7N] (2016-2020)
• Volkswagen Transporter [T6] [T6.1] (2016-2022)

VOLKSWAGEN MODELS | vehicles with factory OPS, MIB/MIB2, High/Discovery Pro and Standard/Composition Media, 5.8 inch, 6.5 inch, 8 inch or 9.2 inch monitor.

• Volkswagen Arteon [3H] (2018-2021)
• Volkswagen Crafter [SZ/SY] (2017-2022)
• Volkswagen Golf [MK7] (2012-2018)
• Volkswagen Golf Sportsvan [SV] (2014-2018)
• Volkswagen Passat [B8] (2016-2020)
• Volkswagen Polo [MK5] [6C] [MK6] [AW1] (2014-2020)
• Volkswagen T-Cross [C1] (2019-2021)
• Volkswagen T-Roc [A11] (2018-2021)
• Volkswagen Tiguan [MK2] [AD1] (2016-2020)
• Volkswagen Touran [5T] (2016-2020)

If you do require the coding tool, we do offer this also.
