ATD DEFCAM1 720p AHD CVBS Rear Reverse Camera OEM Fit For Land Rover Defender 2007-2016

ATD DEFCAM1 720p AHD CVBS Rear Reverse Camera OEM Fit For Land Rover Defender 2007-2016

Out of stock

SKU:
ATD-DEFCAM1
Write a Review
  • Designed for the Land Rover Defender (2007-2016)
  • 720p AHD with CVBS switch
  • Mounts above the vehicles rear washer jet
  • Optional Parking Lines
  • Dustproof and shockproof
We ship in-stock items the same day when ordered before 3pm. For out-of-stock products, call to backorder. We’ll notify you as soon as it's ready to ship.
MSRP: £199.99
Price: £159.99
(You save £40.00 )
Product Documents
Description

MAIN FEATURES

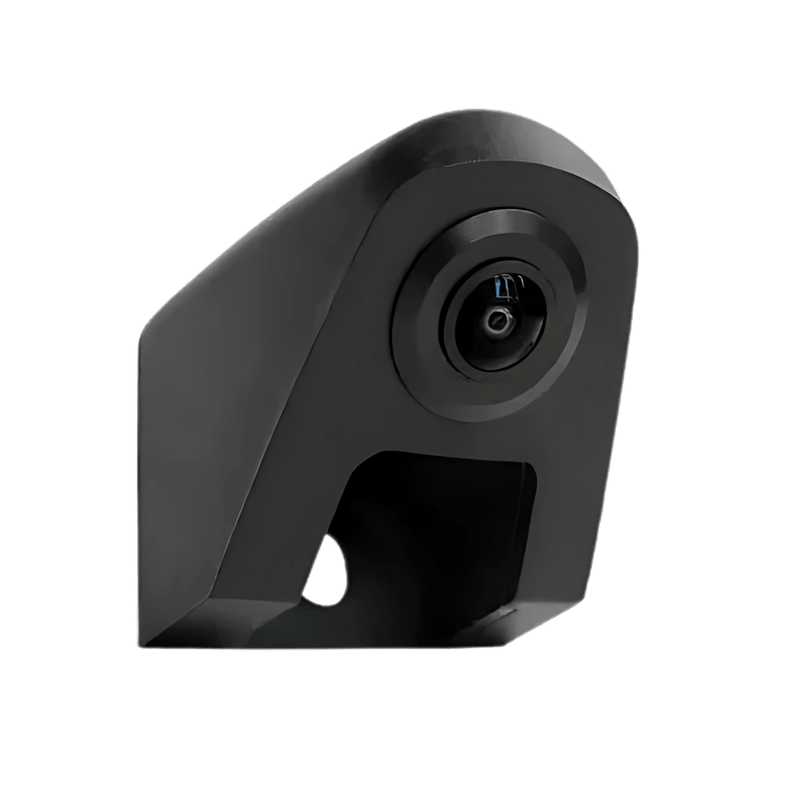

A discreet, Defender-specific reverse camera that integrates around the factory rear washer jet above the rear window, delivering a central, high-level viewpoint and a clean OEM-style finish. Compatible with any aftermarket head unit or display with a camera input, including both AHD and traditional CVBS systems.



The camera housing follows the OE washer jet outline for a seamless, factory look and more useful rearward visibility than low-mounted cameras. The kit includes a 3M self-adhesive rubber seal for a secure fit between the housing and vehicle body.



One-size-fits-all for AHD and CVBS: supports high-definition and non-HD screens (e.g., Alpine Halo, Stinger HEIGH10), with selectable parking lines and wide-angle modes.


Key Features:

  • Defender-specific mount: Central high-level fit around the OE rear washer jet above the rear window for a stealthy OEM appearance.
  • Wide field of view: 180° horizontal FOV and 90° vertical FOV for maximum rear coverage; selectable parking lines.
  • Dual video formats: AHD and CVBS supported in a single unit; compatible with HD and non-HD screens.
  • Durable construction: Waterproof housing, anti-fog lens, dustproof and shockproof for reliable operation in all conditions.
  • High image quality: High-resolution colour imaging with enhanced brightness for night use and superior daytime sharpness.
  • Clean install: Includes 3M rubber seal, wiring harness, fixings; optional piggy-back loom simplifies power feed from reverse lamp.
  • Paintable housing: Plastic camera housing can be painted to match vehicle trim.



Technical specifications:

  • Sensor: 1/3 CMOS chip
  • Resolution: 1280 × 720 (AHD); 720 × 480 (NTSC wide-angle)
  • Image modes: AHD / NTSC with selectable parking lines
  • Certification: E-certified camera



What’s in the box:

  • Camera assembly: Camera, plinth and gasket
  • Cabling: RCA wiring cables
  • Fixings: All required fixings included
  • Instructions: Full-colour fitting guide

VEHICLE COMPATIBILITY LIST

This product has been designed for the following vehicles:



  • Land Rover Defender (2007-2016)



Notes & FAQs:

  • Tow bar visibility: The spare wheel obstructs the tow bar; it will not be visible in the camera view.
  • Aftermarket washer jets: Most billet-style jets are larger than OE and typically not compatible with the housing.
  • Land Rover Defender 90/110/130: Classic Defender models with the rear washer jet above the rear window; integrates at the high-level central position.
  • Head units/displays: Compatible with any aftermarket radio or display that provides a camera input (AHD or CVBS).
