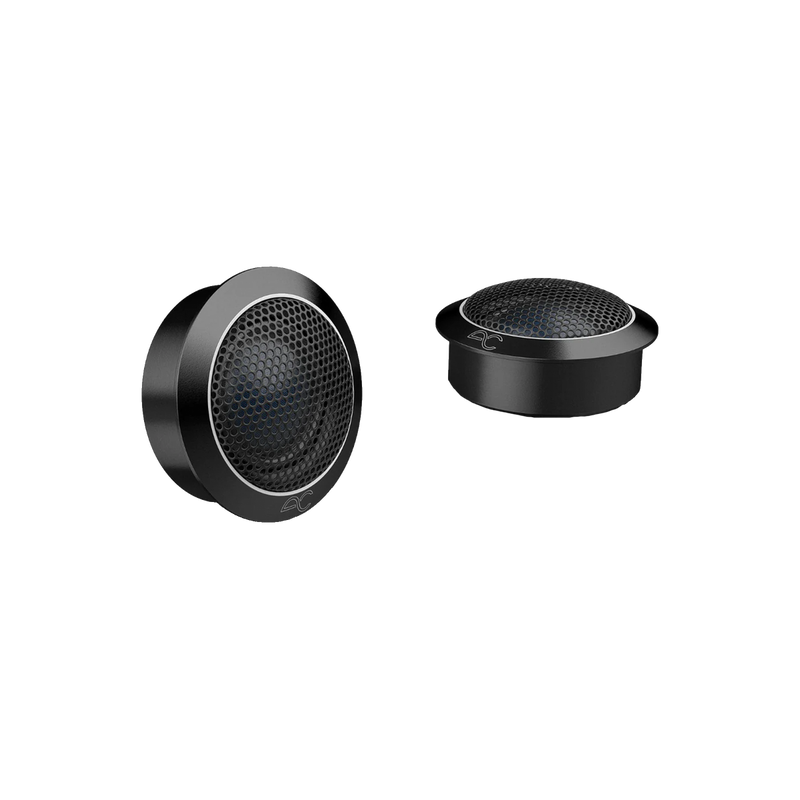

Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.
The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.
Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!
Features:
- Diaphragm: High-fidelity silk dome for accurate sound reproduction
- Housing: Precision machined aluminum for durability and quality
- Sonic Damping: Embedded damping pad for improved audio performance
- Magnet: Neodymium magnet for enhanced efficiency and compact design
- Assembly: Detachable housing suitable for OE (Original Equipment) applications
- Frequency Response: Rear-dampened hybrid silk dome for extended frequency range
- Mounting: Multiple mounting accessories included for easy installation
- Filters: In-line high-pass filters included to minimize distortion
- Compatibility: Pair with any Audio Control PNW speaker lineup
Specifications:
- DC Resistance (Re): 2.3 Ohms
- Power: 100W RMS / 125W Max
- Nominal Impedance (Z): 3 Ohms
- Resonance Frequency (Fs): 1.621 kHz
- Mechanical Q Factor (Qms): 6.92
- Electrical Q Factor (Qes): 2.3091
- Total Q Factor (Qts): 1.7314
- Frequency Response: 1k–20kHz
- Tweeter Voice Coil Diameter: 25 mm
In-line Crossover Specifications:
- Crossover Type: 1st Order Butterworth
- Crossover Frequency: 3.5 kHz HP
- Slope: -6 dB / Octave
In the Box:
- (2) PNW-1 Tweeters
Dimensions:
- Overall Diameter (with grille): 2.13 in / 54 mm
- Cut Out Diameter: 1.85 in / 47 mm
- Mounting Depth: 0.63 in / 16 mm
Additional Notes:Umbrella not included
