MAIN FEATURES

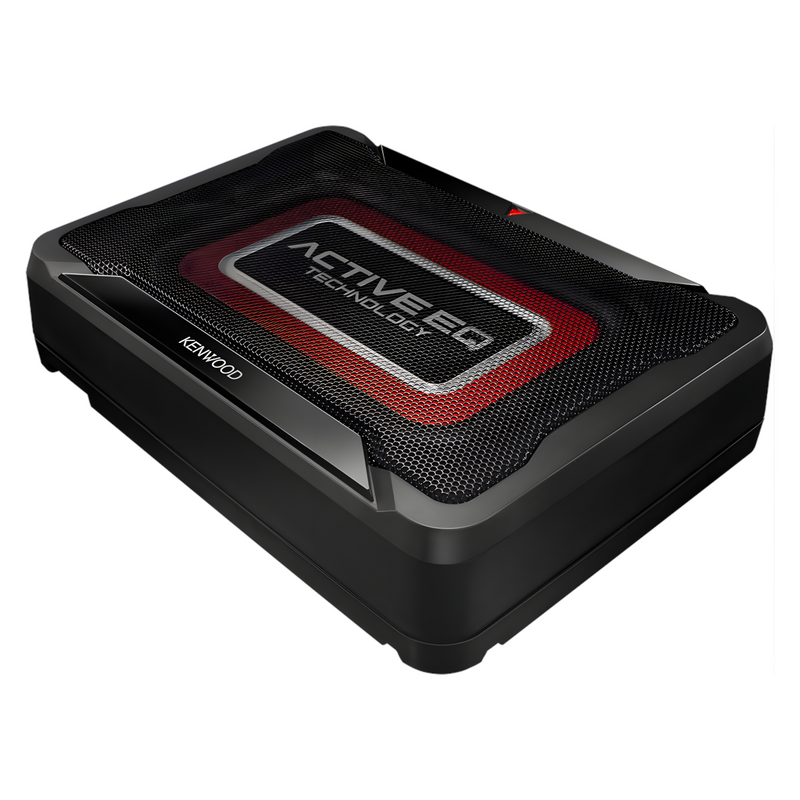

The Kenwood KSC‑PSW7EQ is a premium compact powered subwoofer designed for drivers who want deeper, richer bass without the hassle of a bulky enclosure. Its ultra‑slim aluminium housing (ideal for under‑seat or hidden installations) packs a 200 × 130 mm aluminium diaphragm reinforced with Kenwood’s micro‑step surround, ensuring precise cone movement and distortion‑free bass reproduction.
Powered by a high‑efficiency Class‑D amplifier delivering 160W max output, the KSC‑PSW7EQ adds serious low‑frequency weight to any factory or aftermarket system. Kenwood’s newly developed Active EQ Technology offers three selectable bass curves, letting you tailor the sound to your music—whether you prefer tight punch, warm depth, or a more aggressive low‑end profile.
A wired remote control is included, giving you instant access to volume, frequency adjustment, phase switching, and EQ mode from the driver’s seat. With speaker‑level inputs and a built‑in low‑pass filter, integration into virtually any vehicle audio setup is straightforward.
Acoustic & Mechanical Design
- 200 × 130 mm aluminium diaphragm - Provides stiffness and fast transient response, reducing distortion and improving low‑end accuracy.
- Micro‑step surround - Enhances cone control during high‑excursion movement, maintaining linearity and reducing mechanical noise.
- Die‑cast aluminium enclosure - Acts as both a structural frame and a heat sink, improving durability and thermal stability.
Amplifier & Signal Processing
- 160W max / 50W RMS Class‑D amplifier - Efficient power delivery with minimal heat output, ideal for hidden installations.
- Active EQ Technology - Deep/Punch/Flat
- Variable low‑pass filter (50–125 Hz) - Allows precise integration with factory or aftermarket speakers.
- Phase control (0° / 180°) - Helps correct cancellation issues depending on mounting location.
Connectivity & Integration
- Speaker‑level and RCA inputs - Compatible with factory head units and aftermarket stereos without needing additional converters.
- Auto signal sensing - Powers the unit on/off automatically when using speaker‑level inputs.
- Wired remote controller
Installation & Fitment
- Ultra‑slim profile - Designed for under‑seat, rear‑seat, or boot‑side mounting.
- Integrated mounting brackets - Simplifies secure installation in tight spaces.
- Optimised airflow and heat dissipation - Ensures stable performance during extended listening sessions.
KEY SPECIFICATIONS
- Driver size: 200 × 130 mm (rectangular aluminium diaphragm)
- Amplifier type: Class‑D
- Max power: 160W
- RMS power: 50W
- Frequency response: 40–200 Hz
- Low‑pass filter: 50–125 Hz (variable)
- Input sensitivity:
- RCA: 0.2–4V
- Speaker level: 1.0–12V
- Phase: 0° / 180°
- Dimensions: approx. 280 × 70 × 200 mm
- Weight: approx. 3.1kg
