MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
Citroen
- Citroen Jumper (250) (05/2014–10/2022)
- Citroen Jumper (250) (10/2022–06/2024)
- Citroen e-Jumper (259) (10/2021–06/2024)
- Citroen Relay (250) (2006–2024)
Fiat
- Fiat Ducato (ZFA 250) (05/2014–11/2021)
Opel
- Opel Movano Cargo C (Y) (10/2021–01/2024)
- Opel Movano Electric Cargo C (Y) (10/2021–01/2024)
Peugeot
- Peugeot Boxer (Y) (09/2014–12/2019)
- Peugeot Boxer (Y) (08/2018–06/2024)
- Peugeot e-Boxer (Y) (10/2021–06/2024)

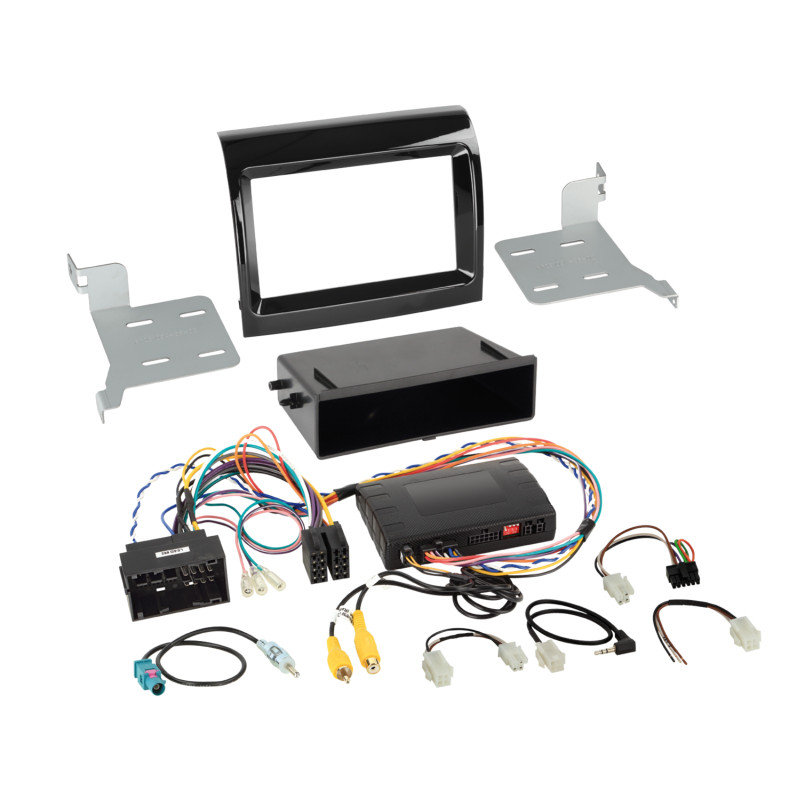

Products:
- Colour: Piano Black
- Head Unit Type: 2-DIN Radio Fascia with Storage Compartment & Radio Connection Kit
- System Type: CAN Bus Vehicle with Info Adapter
Connection Types
- 52-Pin Fiat Connector – Main vehicle interface
- OEM Steering Wheel Remote Control → 42ctmultilead3
- OEM Antenna Fakra (Female) → DIN (Male) Adapter
- OEM Reversing Camera → RCA (Male) Yellow Input
- Info Adapter – Vehicle Settings / Vehicle Information Visualization
Provided Signals
- Red: +12V Ignition Terminal 15
- Orange: +12V Lighting Terminal 58
- Purple/White: +12V Reverse Signal
- Pink: Speed Pulse Signal
- Green: Ground (GND)
- Handbrake Signal
- Steering Wheel Remote Control Support
Rear‑View Camera Integration
- Connection Type: OEM reversing camera → RCA (Male) Yellow
- OEM camera connector pinout:
- Red – Pin 31 Video +
- White – Pin 32 Video −
- Black – Pin 33 Shielding
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- High beam assist
- Driver assistance systems
- Start/Stop function adjustment
- Date and time settings
- Certain onboard computer vehicle settings
- Some trip odometer and software menu functions
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles originally equipped with Continental 250VP1 / 250VP2 OEM head units
- Vehicles with Daiichi OEM units
- Compatibility Notes:
- Vehicles with persistent fault display or different software packages may not be compatible
- Vehicles with Daiichi OEM unit wiring harness (black cables) require removal of adapter harness from driver-side radio slot
- Vehicles with directly wired Daiichi units (colored cables) may require additional interface Item: 42a-1094-018
Important Installation Notes
- Verify OEM device functions and vehicle settings before removing the original unit
- Ensure adapter connectors match the vehicle wiring both visually and technically
- Connect all cables according to the aftermarket head unit and info adapter manufacturer instructions
- Configure DIP switch settings for the OEM head unit type before installation
- Connect vehicle power supply last during installation
- Configure steering wheel controls, info adapter settings, camera input, and other functions in the retrofit device menu
- Test steering wheel controls, camera display, and vehicle functions before final assembly
- Any wiring modifications or alternative connections must be carried out by trained specialists
- Modifications to the wiring harness or interface may void the product warranty
- Vehicles with different equipment levels, reimported vehicles, or different software versions may have limited compatibility with some functions
