ACV 611230-26-2 Single DIN HU Fitting Installation Kit For Vauxhall Agila Vectra Zafira (Charcoal)

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

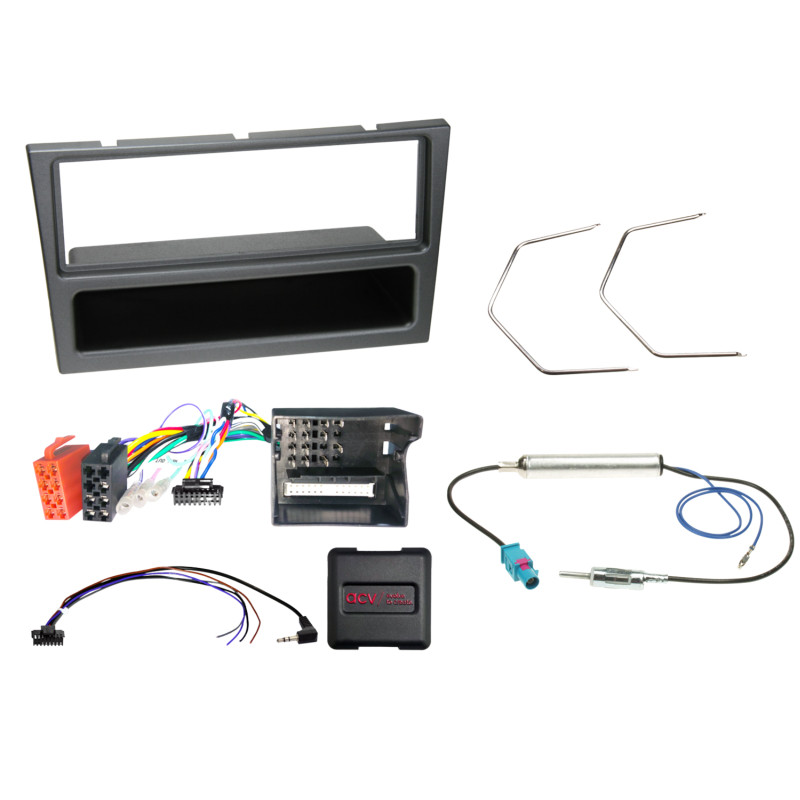

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Opel Agila (HB) 04/2008 – 12/2014
• Opel Combo (C) 10/2004 – 09/2011
• Opel Meriva A (X01) 11/2005 – 03/2010
• Opel Signum (Z03) 09/2005 – 08/2008
• Opel Tigra Twin Top (XC) 07/2004 – 11/2009
• Opel Vectra C (Z02) 09/2005 – 09/2008
• Opel Vivaro A (X83) 09/2006 – 01/2011*
• Opel Zafira B (AH) 07/2005 – 06/2010
• Opel Zafira B (AH) 02/2008 – 12/2014




Products:

• Colour: Charcoal Metallic
• Head Unit Display Cut‑Out: 1-DIN with compartment
• System Type: CAN bus / analog steering wheel control

Connection Types

• 40-pin Quadlock Opel connector – Main vehicle interface
• OEM steering wheel remote control → 3.5 mm jack / loose cable
• OEM antenna Fakra(m) → DIN(m)
• Blue: +12V antenna remote

Provided Signals

• Red: +12V ignition terminal 15
• Orange: +12V lighting terminal 58
• Purple/White: +12V reverse signal
• Pink: Speed signal
• Green: Ground (GND), Handbrake signal
• Output current rating: 250 mA max
• Current requirement >250 mA: 1 relay coil resistance ≥75 ohms, 2 relays coil resistance ≥150 ohms
• Steering wheel remote control signals
• Vehicle settings supported

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Analog steering wheel remote control
- Some vehicle settings supported; OEM vehicle settings may not be fully available
- Driver assistance and additional OEM functions may be unsupported

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM units
• Vehicles with Blaupunkt / Delphi / Siemens VDO OEM units
• DIP switch settings for the aftermarket device manufacturer (see operating instructions)
• *Vehicles with trapezoidal OEM unit




Important Installation Notes

1. Verify all OEM device functions and vehicle settings before removal
2. Disconnect the OEM device with power off
3. Check interface connections for correctness and continuity with power off
4. Configure interface settings and hardware configuration with power off
5. Connect radio connection cable according to aftermarket device instructions
6. Connect all other connections according to aftermarket device instructions
7. Connect entire installation to vehicle; live connection last
8. Configure interface software and aftermarket device per instructions (steering wheel remote control/hands-free system/antenna phantom power, etc.)
9. Test steering wheel remote control and vehicle functions
10. Any hardware or cable configuration changes must be made with power off; repeat steps after changes
11. In case of interface or vehicle malfunction:
12. Revert to OEM device
13. Operate OEM device
14. Put CAN bus into standby mode
15. Check interface hardware configuration
16. Reconnect as per instructions above
17. Connections, alternative connections, or loose cable extensions are for trained personnel only
18. Further wiring harness changes must be verified for manufacturer approvals, functionality, and warranty impact
19. All modifications are at own risk; may void product warranty
