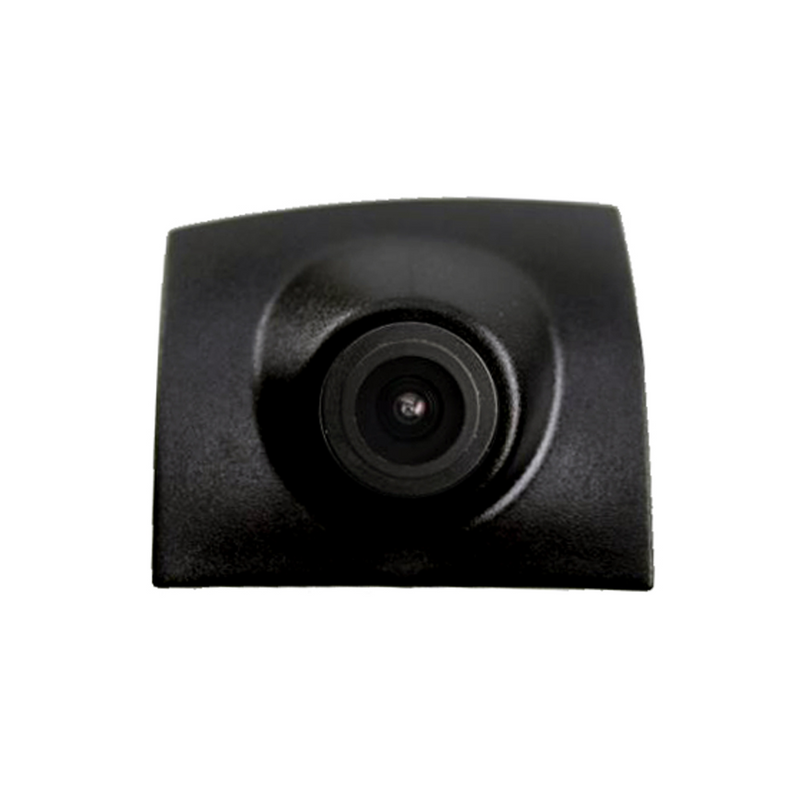

ATD BMWF08 Front Grille Mounted Camera For BMW X5 Series F15 F85 Grille Fit Top Section Clip-In

MAIN FEATURES

This front emblem camera discreetly fits into the front grille. Our easy-to-install front cameras can easily be retrofitted at the branding of many vehicle models - is a perfect retrofit camera not to install. Thus, a more discreet installation is possible and the original appearance of the vehicle is maintained.

This is not OEM Product, but is a great upgrade option for those who want a front view camera for a number of purposes. This camera is not visible unless you look for it. It is a very useful upgrade for parking, driving through tight corners/areas, avoid damage and small obstacles, gain further / additional viewing area and increases safety. You have the option to fit the camera on the top or the bottom area of the badge depending on your own personal preferences.

Our Direct Fit by Audio Tech Direct reverse cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.

• Fits Into Badge Location
• ​NTSC video format
• Night sensors & wide angle view
• 1/3" colour sharp CCD image sensor
• Fixed position distance guide lines
• ​580K TV lines HD quality display
• Comes with 6m video cable with trigger line & DC plug

PLEASE NOTE: The rear view camera system runs on a +12v system (ideally you want between 13-15 volts for a good stable image). Some models with CANBUS have voltage drops on the reverse bulb power (for bulb out warnings on the dash). In such cases, a relay would be required with the camera to boost the voltage. We have this available with part number CBS-CAMRELAY. The relay is not supplied with the camera and is sold separately.

DISTANCE PARK ASSIST GUIDE-LINES This camera includes convenient distance guides that makes parking safer and more convenient compared to a regular rear-view camera. Note: distance guides only work with after-market navigation and media monitors. *Note this is a library image, not the image of this particular camera	6M RCA WITH TRIGGER WIRE & DC PLUG Convenient RCA output means this camera can be used with any after-market monitor that will accept this cameras video signal. Your head unit or monitor will also require a CAM-In RCA connection. This will NOT work directly with any factory fitted monitors or head units. You will require an interface (if available) adaptor for a factory head unit to accept an after-market rear view camera.
FITS INTO THE FRONT GRILLE DIRECTLY This front grille fit camera goes into the vehicles grille on the front. As an extra parking aid, you can select the AV-IN mode on your after-market stereo and view the camera to help with squeezing into those tight parking spaces.	VARIANTS APPLY! SO PLEASE CHECK BEFORE YOU BUY Whilst we try and make every effort to make the fitment list as accurate as we can, we cannot cover all variants of each application. It is up to you, the customer, to ensure you double check that the item matches the existing space on the vehicle and also that the product that the camera will connect to will be able to connect and function with the head unit or monitor.

VEHICLE COMPATIBILITY LIST

We have this product listed out as being tried and fitted with variants of the vehicles listed below. We strongly recommend you cross reference the details in the description against your vehicle to ensure the item is suitable for your vehicle.

COMPATIBLE WITH THE FOLLOWING MODELS:

• BMW X5 [F15/F85] (2015-2018)

SIZE: 43mm x 51mm x 50mm | Designed to fit in to front grille on a BMW

NOTE: This vehicle list is a guide only. Whilst we try and make every effort to make the fitment list as accurate as we can, we cannot cover all variants of each application. It is up to you, the customer, to ensure you double check that the item matches the existing space on the vehicle and also that the product that the camera will connect to will be able to connect and function with the head unit or monitor.
