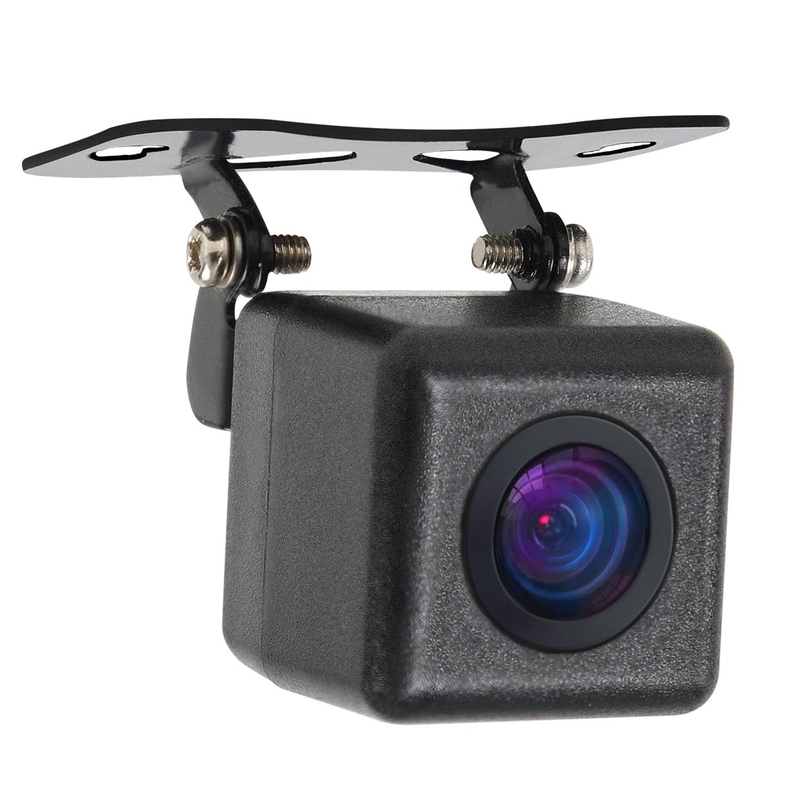

ATD CAM723 Universal Fit Rear Reverse Camera 720p AHD With CVBS NTSC Optional Guidelines

This 720p AHD camera (1280x720) with optional CVBS NTSC output is ideal for use as a front, reverse, or backup camera.

For over a decade the ATD Direct Fit Reverse Camera range has been the preferred choice of trade professionals, offering exceptional quality, seamless integration, and outstanding value. Designed to enhance vehicle safety and convenience, this camera provides superior image clarity and a wide field of view optimal for parking assistance.

This high-quality aftermarket camera delivers a wide 150º viewing angle and crisp 720p resolution—far superior to older 420 TVL cameras with narrower fields of view. It’s a popular upgrade for those seeking improved parking visibility, reversing safety, or added front-camera functionality.

Default: HD 720p AHD video (25fps) – crystal-clear imaging, ideal for Android systems and AHD-compatible monitors. Optional: CVBS NTSC (480TVL) – activated by cutting the white loop cable, for full compatibility with older or branded head units and AV inputs. SMARTSENS SC1345 CMOS Sensor for improved night vision and low-light performance. 14mm lens for enhanced image capture.   Default: HD 720p AHD video (25fps) – crystal-clear imaging, ideal for Android systems and AHD-compatible monitors. Optional: CVBS NTSC (480TVL) – activated by cutting the white loop cable, for full compatibility with older or branded head units and AV inputs. SMARTSENS SC1345 CMOS Sensor for improved night vision and low-light performance. 14mm lens for enhanced image capture.

8m shielded aviation-grade cable – Other manufacturers include a 6m unshielded wire, which is more prone to noise and signal drop. Ours is longer, fully shielded, and built to maintain video clarity even near power lines or heavy machinery. 8m shielded aviation-grade cable – Other manufacturers include a 6m unshielded wire, which is more prone to noise and signal drop. Ours is longer, fully shielded, and built to maintain video clarity even near power lines or heavy machinery.

Includes optional static parking lines functionality for easy parking in all circumstances. Active by default. To remove them, simply cut the green loop. This functionality is ideal as some monitors or interfaces are able to produce their own lines. Includes optional parking lines functionality. Includes optional static parking lines functionality for easy parking in all circumstances. Active by default. To remove them, simply cut the white loop.

With a 150° wide-angle lens, this camera strikes the perfect balance between coverage and clarity. Capture everything you need without any distortion or fish eye effect. Gives a clear view of the surroundings behind you. With a 150° wide-angle lens, this camera strikes the perfect balance between coverage and clarity. Capture everything you need without any distortion or fish eye effect.

With an IP68 rating, this car camera is built to withstand dust, rain, and even full submersion—perfect for all-weather driving and harsh environments. While it’s tough enough for storms and splashes, it is not rated for direct pressure washing. IP68 rating – this car camera is built to withstand dust, rain, and even full submersion—perfect for all-weather driving and harsh environments. Not rated for direct pressure washing.

All our cameras are fully UKCA and CE marked, meeting rigorous UK and EU standards for safety, quality, and reliability—so you can install with confidence, knowing your equipment is fully compliant and built to last.   All our cameras are fully UKCA, CE & E‑marked, meeting rigorous UK and EU standards for safety, quality, and reliability—so you can install with confidence, knowing your equipment is fully compliant and built to last.

VEHICLE COMPATIBILITY LIST
