MAIN FEATURES
Audio Tech Direct now offers a range of cable adaptors to allow an after-market camera to be connected to the OEM factory radio. These are a great way of adding some much needed parking assistance to your factory radio. Please read the listing description carefully as coding and variants with the factory radio may apply.

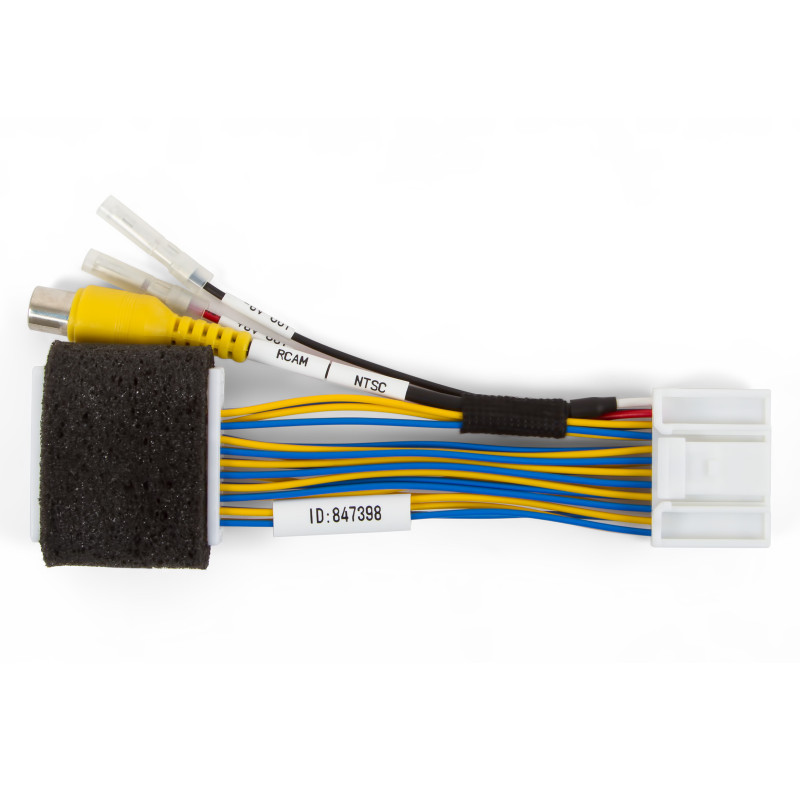

This is a plug-and-play "T" Harness that allows you to easily add a back-up camera (when your vehicle did not come with a OEM backup camera) to select OEM systems while retaining factory settings. Ditch the wires and discover the simplicity of true plug-and-play. Disconnect the factory connector and connect our T-Harness inline.
Features & Benefits:
- This cable allows you to connect rear view cameras in Toyota cars with Toyota Touch 2 / Link.
- The image from the rear view camera will be automatically activated when you shift to reverse gear.
- Plug & Play installation of aftermarket cameras without damaging the OEM wiring.
-
Only supports NTSC Cameras.
- 24 pin socket.
- NTSC video format camera compatibility only.
Cable for rear view camera connection to the OEM monitor . Using this cable you will be able to install the aftermarket camera Plug & Play without damaging the car wires. Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 24 pin socket (as shown in the connection diagram). After connection all OEM functions which work using this socket are preserved due to transit type of connection.
PLEASE NOTE: Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
VEHICLE COMPATIBILITY LIST
For Toyota Touch 2 / Link. Using this cable you will be able to install the aftermarket camera Plug & Play without damaging the car wires. PLEASE NOTE: This cable is incompatible with Entune 3.0 system.
For models with one of these factory radios with 24 pin plug:
- Toyota Touch 2
- Toyota Touch 2 with Go
- Toyota Touch 2 with Go Plus
- Entune 2.0 Audio
- Entune 2.0 Audio Plus
- Entune 2.0 Premium Audio
- Link (for cars of Australian and New Zealand market)
Vehicle fitment (guide only):
- Toyota Alphard (2015-2017)
- Toyota Auris (2014-On)
- Toyota Avensis (2014-On)
- Toyota Camry (2014-2017)
- Toyota C-HR (2016-2020)
- Toyota Corolla (2013-2019)
- Toyota Corolla Sedan (2013-On)
- Toyota GT86 (2016-On)
- Toyota Highlander (2013-On)
- Toyota Hilux (2013-On)
- Toyota Land Cruiser 150 (2013-On)
- Toyota Mirai (2016-2019)
- Toyota Prius+ (2014-2019)
- Toyota RAV4 (2014-2019)
- Toyota Verso (2014-On)
- Toyota Verso S (2013-On)
- Toyota Yaris (2014-On)
Also compatible with US/Canadian models with Entune 2.0 or Australian and New Zealand models with Link.
PLEASE NOTE: The reverse trigger on the Touch 2 system is on the 28pin connection. It is in pin #2.
