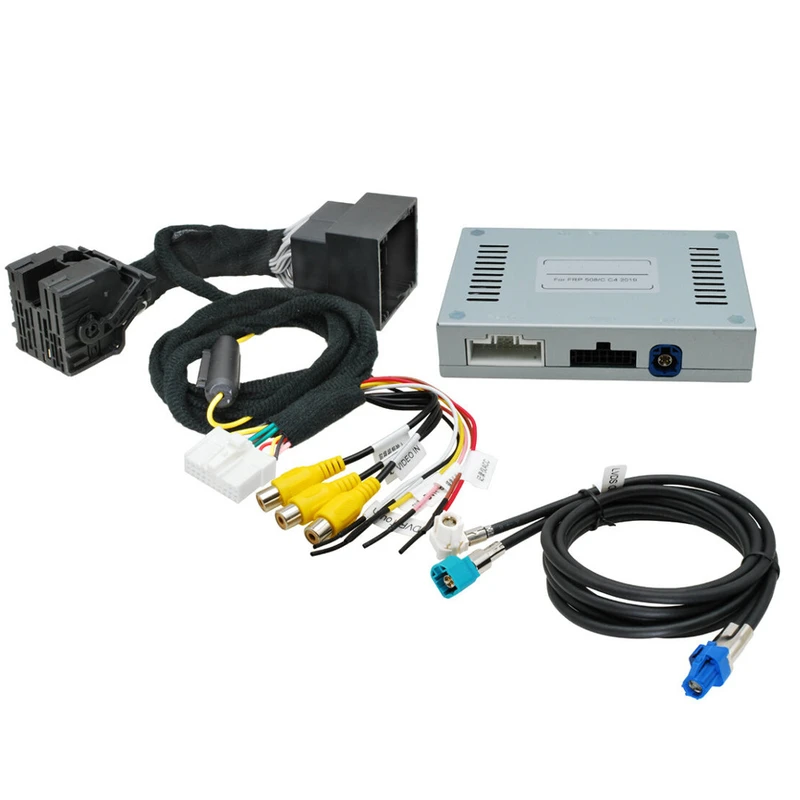

ATD CIK-27563 Reverse Camera Interface For Peugeot Citroen Vauxhall Toyota With 7/8" NAC

MAIN FEATURES

Audio Tech Direct now offers a range of cable adaptors to allow an after-market camera to be connected to the OEM factory radio. These are a great way of adding some much needed parking assistance to your factory radio. Please read the listing description carefully as coding and variants with the factory radio may apply. Add a rear parking camera to the Original screen on select Peugeot, Citroen, DS, Toyota and Opel/ Vauxhall vehicle models with a 7 or 8 inch NAC High or Low navigation Touch screen monitor.

This is a plug-and-play "T" Harness that allows you to easily add a back-up camera (when your vehicle did not come with a OEM backup camera) to select OEM systems while retaining factory settings. Ditch the wires and discover the simplicity of true plug-and-play. Disconnect the factory connector and connect our T-Harness inline.

Add a rear parking  camera to the Original screen on select Peugeot and Citroen cars with NAC high or low navigation Touch screen monitors. Adds active parking lines and integrates with the cars parking sensors to provide a visual parking display. Has optional Front camera or DVR input. No special coding is needed as the interface integrates with the LVDS cable behind the vehicle head unit. The rear camera will activate as soon as reverse gear is engaged.

This interface allows you to connect a reverse camera to the original factory fitted touch screen and display a rear view camera image upon putting the vehicle into reverse gear. It also gives the option to add active guidelines to aid with reverse parking and integrates with the vehicles original parking sensors to provide a visual parking display, as well as having an optional Front camera or DVR (Digital video recorder) input.

Please note: This interface is designed for Citroen/Peugeot/DS/Vauxhall/Toyota vehicles with a 7 or 8 inch NAC Touch screen only.

Features & Benefits:

• No coding required
• Integrates with the LVDS cable behind the vehicle head unit
• Adds active parking lines and integrates with the cars parking sensors
• Rear camera will activate as soon as reverse gear is engaged
• Optional front camera or DVD input
• CAMERAS NOT INCLUDED (Sold Separately)

VEHICLE COMPATIBILITY LIST

WHAT IS NAC? - NAC is one of Peugeot's factory fitted navigation systems. Also identified as NAC low/high (continental) RCC (Bosch), the system was introduced to Citroen and Peugeot vehicles from 2016 onwards.

Vehicle fitment (guide only):

Citroen (7 inch NAC Low or NAC High infotainment)

• Citroen Berlingo [MK3] (2019-Onwards)
• Citroen C3 (2017-Onwards)
• Citroen C4 (2017-Onwards)
• Citroen C4 Aircross (2017-Onwards)
• Citroen C4 Picasso (2017-Onwards)
• Citroen C5 (2017-Onwards)
• Citroen C6 (2016-Onwards)
• Citroen Dispatch [Space Tourer] (2016-Onwards)
• Citroen Dispatch /Jumpy (2016-Onwards)

DS Automobiles (7 inch NAC Low or NAC High infotainment)

• DS Automobiles DS3 Crossback (2018-Onwards)
• DS Automobiles DS4 (2017-Onwards)
• DS Automobiles DS5 (2017-Onwards)
• DS Automobiles DS7 Crossback (2017-Onwards)

Fiat (7 inch Connect Nav, NAC low & NAC high)

• Fiat Scudo 3rd gen (2022-Onwards)

Peugeot (7 inch Connect Nav, NAC low & NAC high)

• Peugeot 208 (2019-Onwards)
• Peugeot 308 (2019 Onwards)
• Peugeot 408 (2019-Onwards)
• Peugeot 508 (2019-Onwards)
• Peugeot 2008 (2017-Onwards)
• Peugeot 3008 (2017-Onwards)
• Peugeot 4008 (2017-Onwards)
• Peugeot 5008 (2017-Onwards)
• Peugeot Expert [MK3] (2017-Onwards)
• Peugeot Partner [MK3] (2017-Onwards)
• Peugeot Rifter (2018-Onwards)

Toyota (7 inch Connect Nav, NAC low & NAC high)

• Toyota ProAce (2017-Onwards)
• Toyota ProAce City (2019-Onwards)

Vauxhall / Opel (8" 5.0 IntelliLink system (NAC low) touch screen)

• Vauxhall Combo [E] (2019 Onwards)
• Vauxhall Corsa [F] (2019 Onwards)
• Vauxhall Crossland X (2016 Onwards)
• Vauxhall Grandland (2016 Onwards)
• Vauxhall Vivaro [MK4] (2019 Onwards)
