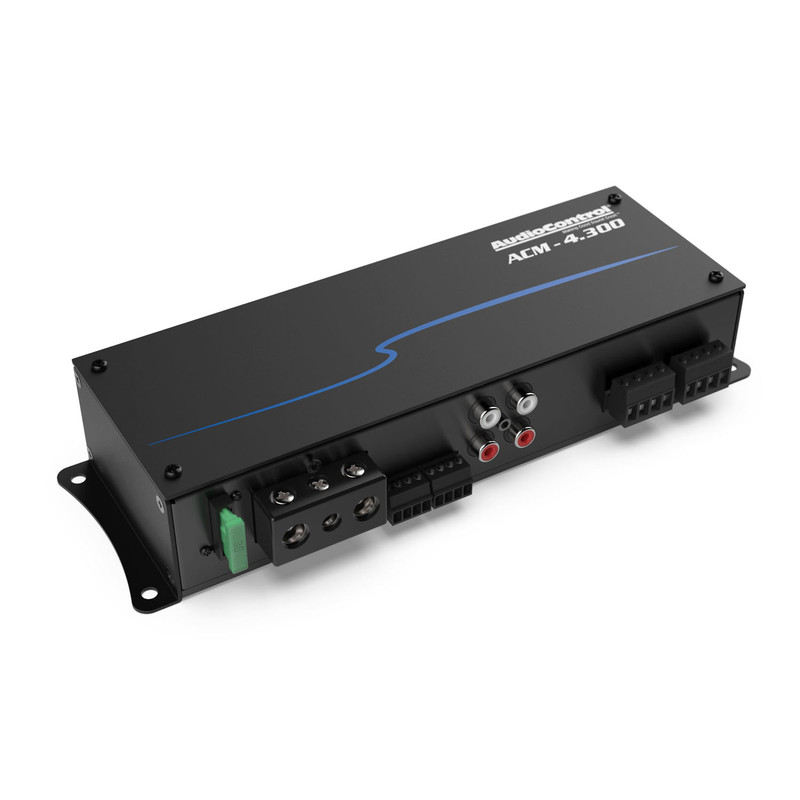

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting
Features:
- 4 x 75 watts @ 2 ohms
- 4 x 50 watts @ 4 ohms
- 150 watts @ 4 ohms bridged
- GTOTM Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Reversible Cover Plate
Specifications:
- Preamp Inputs: 4 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 4
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 50 W x 4 RMS
- 2 Ω – 75 W x 4 RMS
- Bridged 4 Ω – 150 W RMS
Performance:
- Frequency Response: 10 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 10 to 4 AWG wire
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 32 Hz
In the Box:
AudioControl ACM-4.300 Amplifier
Dimensions:
- Dimensions: 9.4″W x 3.0″D x 1.75″H
