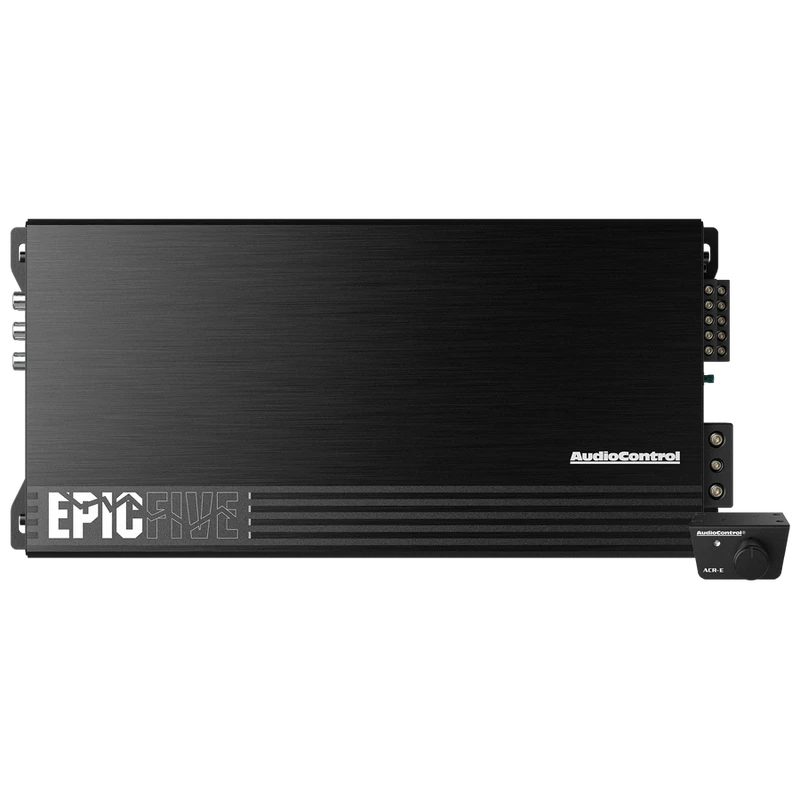

The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.
Features:
- Digital Class-D, stable to 2Ω
- 0–12dB variable bass boost
- Hex screw direct wire terminals
- 4/8-gauge power & speaker terminals
- 91dB+ SNR, low idle draw
- Multi-mode protection: OCP, OVP, UVP, DCP, OTP
- Includes ACR-E remote control
- EPICENTER link for easy connection
- Compact High-Power Class D Amplifier
- High-Current Design for Maximum Efficiency
- 4 x 75 Watts + 1 x 300 Watts @ 4 Ohms
- 4 x 150 Watts + 1 x 500 Watts @ 2 Ohms
- 1 x 700 Watts @ 1 Ohm (Subwoofer Channel)
- 2 x 300 Watts @ 4 Ohms Bridged
- Smart Auto-Reset Protection Circuit
- 12 dB/Octave Linkwitz-Riley Variable High Pass & Low Pass Filters
- 12 dB/Octave Variable Subsonic Filter
- EPIC Boost™ Variable Bass Enhancement
- ACR-E Remote Level Control Included
- Solid Power & Speaker Terminals with Hex Screws
- Built for The Epicenter® Integration
Specifications:
- Line-Level Inputs: 500 mV – 12V RMS
- 4 Ω – 75 W x 4 + 300 W x 1
- 2 Ω – 150 W x 4 + 500 W x 1
- 1 Ω – 700 W x 1 (Subwoofer Channel)
- Bridged 4 Ω – 300 W x 2
Performance:
- Frequency Response:
- 10 Hz – 24 kHz (Channels 1–4)
- 12 Hz – 181 Hz (Channel 5)
- Signal-to-Noise Ratio: 92.1 dBA (Ref 75 W @ 4 Ω)
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 150A
- High Pass Filter: 12 dB/Octave Linkwitz-Riley (Off, 50 Hz – 500 Hz)
- Low Pass Filter: 12 dB/Octave Linkwitz-Riley (40 Hz – 180 Hz)
- Subsonic Filter: 12 dB/Octave Linkwitz-Riley (Off – 50 Hz)
- EPIC Boost: 45 Hz, 0 – 12 dB
- Speaker Terminal Wire Gauge: 8 AWG
In the Box:
- AudioControl EPICFIVE Amplifier
- Wrench
- Mounting Screws
- ACR-E Remote Level Control & Cable
- Epicenter Link (1m Harness)
Dimensions:
- Dimensions: 6.1″ W × 13.35″ L × 2.01″ H
