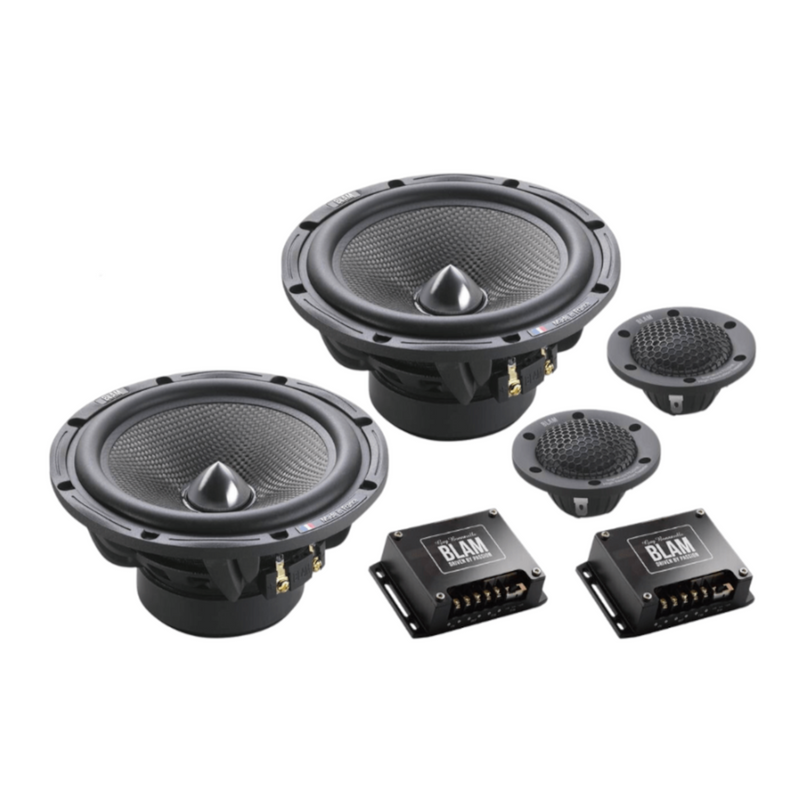

The SIGNATURE S165 85 is a 6.5 Inch (165mm) high fidelity 2-way component speaker system which offers incomparable sound quality. Equipped with 2 x 165mm bass-midrange speakers, two 25 mm (1 Inch) high resolution soft dome tweeters and 2 external crossovers, this set delivers a pleasant yet captivating sound. The bass-midrange driver provides the extra punch that elevates your music experience to a high-end level. With a reproduction range of 45Hz-40 KHz and a max power output of 200 W, the S165 85 speaker set is the ideal companion for any music lover.
This kit includes two 165 mm (6.5’’) mid-woofers, two 25 mm (1’’) soft dome tweeters and two high pass 12 dB/octave crossovers.
- WS 6.85 HIGH FIDELITY WOOFER
- 165 mm (6.5") woofer
- Max power 200 W – Nominal power 100 W
- Frequency response 45 Hz – 40 kHz
- Sensitivity 91.7 dB – Impedance 3 O
- Moulded aluminium saladier – Ultra rigid carbon fiber diaphragm – NBR perimeter suspension – Long life spider “conex” – 34mm coil on fiberglass support – 85 × 20 mm magnetic motor – Machined aluminium head – Gold plated terminal block.
LT25 HIGH QUALITY TWEETER
- 25 mm (1 Inch) soft dome diaphragm
- Maximum power 100 W
- Nominal power 15 W
- Frequency response 1.5 kHz – 40 kHz
- Sensitivity 90.1 dB
- Impedance 4 Ω
- Mounting depth 25.6 mm
- High efficiency magnet (N38H neodymium) – Precision machined aluminium front plate – Low resonance rear chamber – Large suspension for wide dispersion.
BFT02 HIGH QUALITY CROSSOVER
- 2-way filter 12/12 dB / octave
- Adjustable tweeter level +3 dB 0 dB or -3 dB
- Crossover frequency: 4 kHz
- High quality metallized polyester capacitors – Low resistance air coils.
Supplied Accessories
- Mounting screws
- Tweeters accessories – Angled support included
- User manual
