MAIN FEATURES

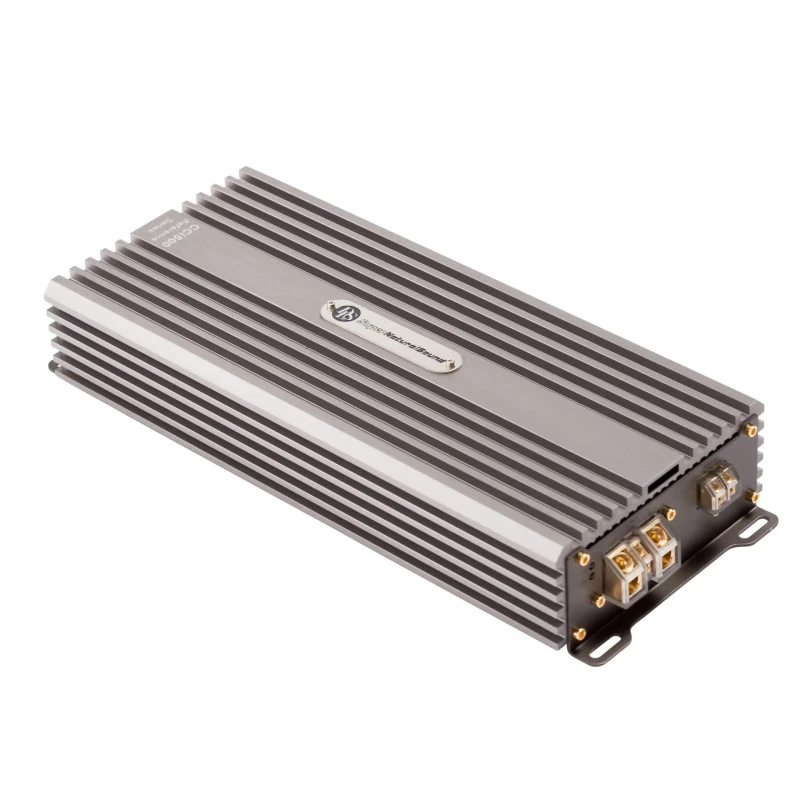

DLS CCi500 Mono Class D Amplifier
The DLS CCi500 is a high-performance mono Class D amplifier designed to deliver powerful, controlled bass with exceptional sound quality. Developed and sound-tuned by Gordon Taylor in collaboration with DLS Sweden, it combines advanced Class D technology, intelligent cooling, and compact construction for reliable high-output performance.
Designed for subwoofer applications, the CCi500 features a high-level input with Auto Start, adjustable low-pass filter, subsonic filter, variable bass boost, and phase control for seamless integration with both factory and aftermarket audio systems.
Key Features:
- Mono Class D Subwoofer Amplifier
- Compact High-Power Bass Amplifier
- Designed and Sound Tuned by Gordon Taylor
- Intelligent Heat Management System
- Power Output: 550W RMS @ 1Ω
- Power Output: 370W RMS @ 2Ω
- Power Output: 200W RMS @ 4Ω
- Advanced Class D Circuitry
- Signal-to-Noise Ratio: >92 dB
- Frequency Response: 10 Hz – 2.5 kHz
- High-Level Input with Auto Start
- Input Sensitivity: 1 – 4V
- Adjustable Low Pass Filter: 35 – 250 Hz
- Switchable 30 Hz Subsonic Filter
- Variable Bass Boost: 0 to +6 dB
- Selectable Phase Control (0° / 180°)
- Damping Factor: >140
- Integrated Cooling Fan
- Compact Dimensions: 129 × 320 × 51 mm
- Weight: 2.4 kg
UK Deliveries: Free UK mainland delivery applies to orders over £30 (exceptions apply to remote regions and islands, which will see a surcharge at checkout).
Orders Under 2kg: Most in-stock items arrive in 2–3 working days. Items held by suppliers take 4–6 working days. (Note: Saturday is not a working day).
Orders Over 2kg: Dispatched via trusted couriers including AMAZON Shipping, Royal Mail, DPD, and UPS.
Royal Mail Specifics: Royal Mail aims to deliver in 1–3 working days, though this is not guaranteed. If your item has not arrived after 7 days, please contact us. We can only replace missing items after 14 days have passed.
More information (including international delivery on our Delivery Information page.
