MAIN FEATURES

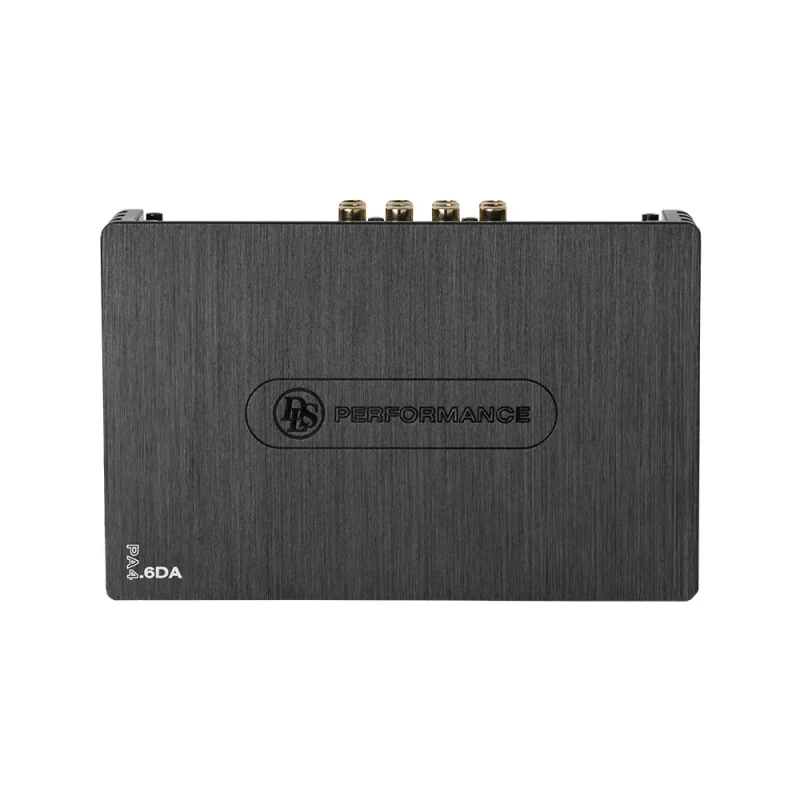

DLS PA4.6DA 4 In 6 Out DSP Amplifier
The DLS PA4.6DA is a compact 6-channel DSP amplifier that combines advanced digital signal processing with a built-in Class AB amplifier. Designed to deliver the warm, natural DLS sound signature, it provides precise system tuning, low listening fatigue, and seamless integration with both factory and aftermarket audio systems.
Powered by a 24-bit/192 kHz Cirrus Logic DSP platform, the PA4.6DA offers extensive tuning capabilities including a 31-band equalizer, flexible crossover filters, and precise time alignment adjustments. Multiple input options, including high-level inputs with Smart Load Circuitry, RCA, optical digital, and Bluetooth 5.1, make it ideal for modern OEM integrations. The compact design, USB PC tuning software, and support for up to ten memory presets provide complete control over your audio system.
Key Features:
- 6-Channel DSP with Integrated Class AB Amplifier
- 4 x 25W RMS at 4 Ohms
- 4 x 50W RMS at 2 Ohms
- Cirrus Logic 24-Bit / 192 kHz DSP Platform
- 31-Band Graphic or Parametric EQ per Channel
- Flexible Crossover Filters
- Bessel, Butterworth, and Linkwitz-Riley Crossover Types
- Adjustable Slopes from 6 to 48 dB per Octave
- Time Alignment up to 15 ms (519 cm)
- 4-Channel High-Level Input with Smart Load Circuitry
- 2-Channel RCA Low-Level Input
- Optical Digital Input
- Bluetooth 5.1 Audio Streaming
- 6 RCA DSP Outputs for External Amplifiers
- 4 High-Level Amplified Outputs
- Signal-to-Noise Ratio Greater Than 100 dB
- Auto Turn-On Function
- USB 2.0 PC Connection
- Compatible with Windows XP to Windows 11
- Stores Up to 10 User Presets
- Compact Chassis for Easy Installation
- Warm, Natural DLS Sound with Low Listening Fatigue
- Dimension (W x D x H) 116 x 199 x 48
