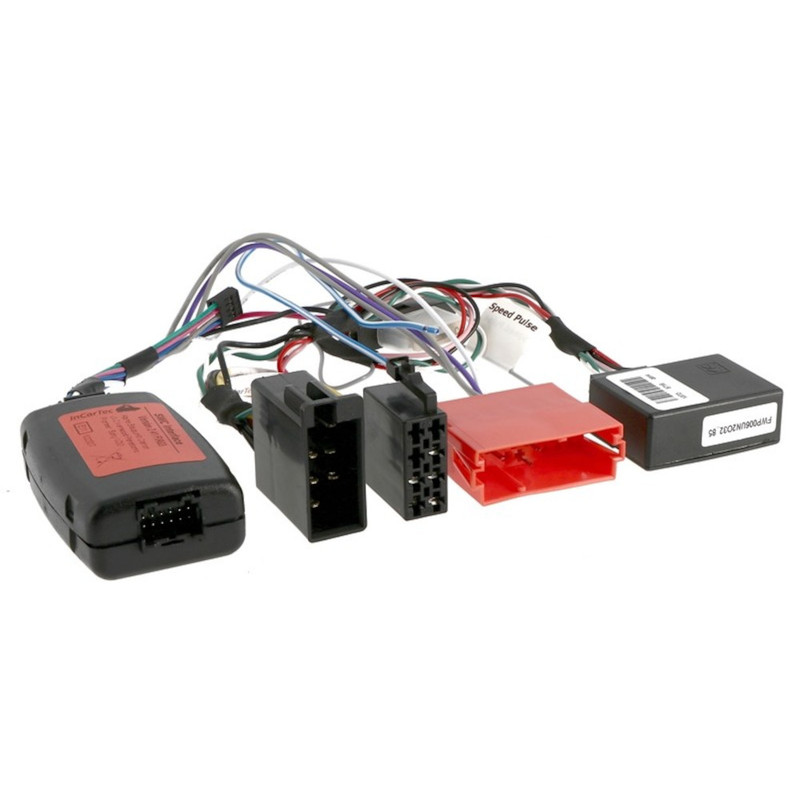

InCarTec 29-655-CAN Steering Wheel Control Interface ISO For Alfa Romeo 147 GT (CANBUS ISO)

MAIN FEATURES

This Steering Wheel Control Interface to allow plug and play installation of an after-market head unit into a vehicle whilst maintaining use of the steering wheel controls. Steering control and stalk adaptors have a very simple but useful function - essentially, they enable you to retain the use of your steering wheel controls when you have an aftermarket head unit fitted, so you can control and enjoy your in-car entertainment exactly the way you want to.

PLEASE NOTE: Each interface is compatible with a range of patch leads. An additional patch lead is required for the steering controls depending on the make of radio being fitted. If unsure please SEE HERE.

FEATURES:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
• Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
• Please check the connections in the vehicle match the harness you are purchasing

VEHICLE COMPATIBILITY LIST

This interface is designed for vehicles that have permanent and ignition power feeds in the ISO connector in the dashboard.
Some cars only have a permanent power supply and use the CANbus signal to turn on the radio, for these cars a separate ignition power will need to be supplied or use our 29-655 interface with switched 12v ignition

Fits the following Alfa Romeo vehicles:

147 (2007-2010) CANBUS vehicles only

GT (2008-2010) CANBUS vehicles only

There are small amount of cars pre-2007 that have CANBUS ignition. Before ordering please remove the original radio as the vast majority of original radios have a useful wiring diagram on the chassis. Remove the original radio and check, if illumination and switched power are showing on pin 2 and 3 of the diagram then it does not have CAN ignition and 29-655 is the correct interface for you:

If Illumination and switched power are missing from pin 2 and 3 of the diagram then the car uses CANBUS ignition and will need interface 29-655-CAN:

NOTE: on some cars, the steering wheel control wires are reversed, check and test for correct operation of the steering wheel controls before installing the new radio in the dashboard. If they are not as expected or reversed then the white and grey steering wheel control wires will need to have their positions swapped at the interface box.

PLEASE NOTE: If the car is fitted with a BOSE sound system, this part must be used in conjunction with 20-266 Alfa Romeo BOSE interface.

Vehicle fitment (guide only):

• Alfa Romeo 147 [Type 937] (2000-2010)
• Alfa Romeo 147 GTA (2002-2005)
• Alfa Romeo 156 [Type 932] (1997-2005)
• Alfa Romeo 156 GTA* (2002-2005)
• Alfa Romeo GT [Type 937] (2004-2010)

Please make sure that is the correct Steering Control Adaptor for your vehicles by firstly checking to see if your make, model and year of car is listed in the advert. Secondly by checking to see if the connection in the picture is the same as you have in your vehicle. If the connection in the car is different from what you see in the picture then this adaptor is NOT suitable.

Note: You may also require other accessories to fit your car stereo eg. fascia adapter or an aerial adaptor. You will not require an ISO stereo lead as it can be substituted for this steering wheel adapter. We stock the full range of stereo fitting parts, just ask if you need help.
