MAIN FEATURES

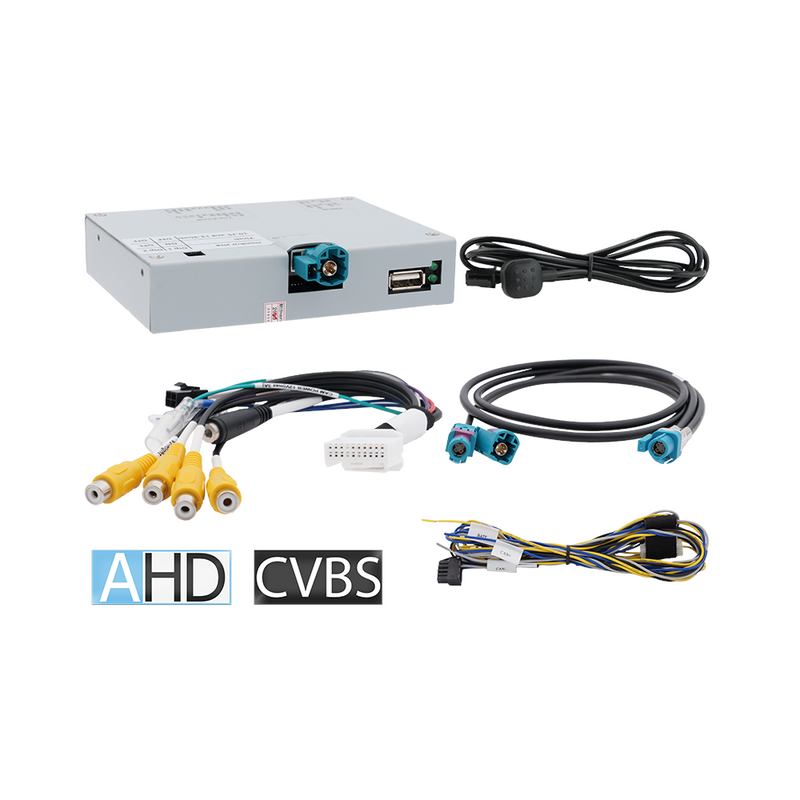

The HDA-NAC12 is a video interface which allows the addition of a rear-view camera and front camera with auto switching and the option of 2 video-sources for side-cameras or additional after-market video-sources, e.g. USB-player, DVB-T2 tuner to the stock factory fitted system.
Compatible with Citroen Fiat Jeep Peugeot Toyota and Vauxhall with NAC/RCC/IVI with 7", 8", 9", 10.25" or 12.3" monitor.
Features and Benefits:
- Video-inserter for factory-infotainment systems.
- 1 CVBS/AHD-input for rear-view camera.
- 1 CVBS/AHD-input for front camera.
- 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
- All inputs NTSC and PAL compatible
- Supported AHD resolutions 720p NTSC, 720p PAL, 960p NTSC, 960p PAL, 1080p NTSC, 1080p PAL.
- Automatic switching to rear-view camera input while reverse gear is engaged.
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds.
- Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles).
- Activatable PDC graphic (not available for all vehicles)
- Picture free during the car ride (only for inserted video-sources)
Limitations:
- Interface inserts only video-signals into the infotainment. To insert audio signals through an possibly factory audio-AUX-input.
- Some vehicles may have none or limited CAN-bus compatibility. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus.
- Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged.
- Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear.
- It is possible that the vehicle CAN-bus is not fully compatible to the interface or the interface is connected analogue. In these cases, moving guide lines for rear-view camera and optical PDC display will not be supported (Check compatibility list for further reference).
VEHICLE COMPATIBILITY LIST
For Vehicles that use:
NAC/RCC/IVI with 7", 8", 9", 10.25" or 12.3" screen, Navi 5.0 Intellilink, Multimedia Navi, Uconnect infotainment
PLEASE NOTE: Not compatible with PSA AIO radio/nav from Bosch with 10.25-inch all-in-one head unit.
Vehicle Fitment (guide only):
- Citroen Berlingo3 (K9) (2018-2024)
- Citroen Berlingo4 (2024 onwards)
- Citroen C3 4.G (2024 onwards)
- Citroen C3 Aircross 2.G/3.G (2021-2024)
- Citroen C4 Cactus II (2018-2020)
- Citroen C4 Picasso (2017 onwards)
- Citroen C4 X (2022 onwards)
- Citroen C5 Aircross (2022 onwards)
- Citroen C5 X (2022 onwards)
- Citroen Dispatch (2016 onwards)
- Citroen DS3 Crossback (2018 onwards)
- Citroen DS4 (2024 onwards)
- Citroen DS7 Crossback (2017-2022)
- Citroen DS9 (2020-2022)
- Citroen Grand (C4) SpaceTourer (2018 onwards)
- Citroen Jumpy III (2016 onwards)
- Fiat Doblo3 (K9)(2022 onwards)
- Fiat Scudo3 (2021 onwards)
- Fiat Ulysse3 (2022 onwards)
- Jeep Avenger (2023 onwards)
- Peugeot 208 (2017-2019)
- Peugeot 208 II (2019 onwards)
- Peugeot 2008 (2017-2023)
- Peugeot 308 II (2017-2021)
- Peugeot 3008 II (2016-2024)
- Peugeot 508 (2017 onwards)
- Peugeot 5008 II (2017 onwards)
- Peugeot Expert III (2016 onwards)
- Peugeot Partner III (2016 onwards)
- Peugeot Rifter (2018-2024)
- Peugeot Traveller (2016-2024)
- Toyota ProAce II (2016- 2023)
- Toyota ProAce City (2020-2023)
- Toyota ProAce Verso (2016 -2023)
- Vauxhall Combo E (2018-2023)
- Vauxhall Corsa F (2019 onwards)
- Vauxhall Crossland X (2017 onwards)
- Vauxhall Grandland X (2017 onwards)
- Vauxhall Mokka B (2020 onwards)
- Vauxhall Vivaro C (2019 onwards)
- Vauxhall Zafira Life (2019 onwards)
NOTE: Not compatible with 360 OEM camera system
