MAIN FEATURES

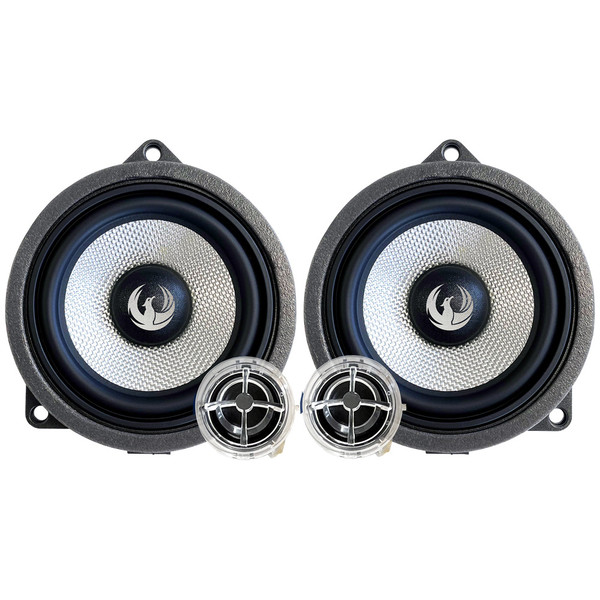

Enhance the clarity and tonal performance of your BMW with the Phoenix Gold ZDSB100CS — a precision 4″ (100 mm) 2-way speaker kit engineered for direct fit and high fidelity sound.
The Phoenix Gold ZDSB100CS is a dedicated 4″ (100 mm) component speaker upgrade designed for many BMW and MINI models. Built with high quality materials and precise engineering, this kit replaces factory midrange or door speakers with superior components — offering clearer mids, refined highs, and improved overall detail. Because it uses plug-and-play connections and fits factory mounting locations, installation is straightforward and clean, without cutting, splicing, or modification.
If your factory sound system lacks crispness or struggles in mid / high ranges, the ZDSB100CS brings a substantial upgrade while maintaining the integrity and aesthetics of your vehicle’s original audio layout.
Key Features:
- 2-way component speaker design: woofer + silk-dome tweeter for expanded frequency coverage
- Power handling: 60 W RMS / 120 W MAX
- Frequency response: ~100 Hz to 20 kHz
- Nominal impedance: 4 Ω
- 1″ (25 mm) silk dome tweeter for smooth high frequencies
- Woofer with sandwich composite cone material for rigid, light performance
- 12 dB crossover network included for clean separation of frequencies
- Neodymium magnet design for compact, efficient magnetic structure
- Fully plug-and-play harness — retains factory wiring, no cutting or splicing required
- Designed to fit directly into OEM speaker locations without modification
- One-year limited warranty against defects in materials and workmanship
VEHICLE COMPATIBILITY LIST
Below is a representative (but not exhaustive) list of BMW / MINI models known to be compatible with the ZDSB100CS. Always double-check your specific trim and speaker layout before ordering.
| Make / Model | Chassis / Variant | Years Compatible | Fitment Location |
|---|---|---|---|
| BMW 1 Series | F20 (facelift) | 2015–2017 | Front doors |
| BMW 1 Series | F20 (2nd facelift) | 2017–2019 | Front doors |
| BMW 1 Series | F21 | 2011–2015 / 2015–2017 / 2017–2019 | Front doors |
| BMW 1 Series | F40 | 2019– onwards | Front doors |
| BMW 2 Series | F22 | 2014–2017 / 2017–2021 | Front doors |
| BMW 2 Series | F23 | 2014–2017 / 2017–2021 | Front doors + Side panel rear |
| BMW 2 Series | F45 / F46 (Active / Gran Tourer) | 2014–2018 / 2018– onward | Front doors + Side panel rear |
| BMW 2 Series | F44 | 2020– onward | Front + rear doors |
| BMW 2 Series | F87 (M2) | 2016–2021 | Front doors |
| BMW 3 Series | F30 / F31 / F34 | 2012–2015 / 2015–2019 / 2013–2020 | Front + rear doors |
| BMW 3 Series | F80 (M3) | 2014–2018 | Front + rear doors |
| BMW 3 Series | G20 / G21 | 2019– onward | Front + rear doors |
| BMW 4 Series | F32 / F33 / F36 / F82 / F83 | 2014–2017 / 2017–2020 | Front doors + side panel rear / rear doors |
| BMW 4 Series | G22 | 2020– onward | Front doors + side panel rear |
| BMW 5 Series | G30 / G31 / G38 | 2017–2023 | Front + rear doors |
| BMW 6 Series | F06 / F12 / F13 / G32 | 2011–2018 / 2017 onward | Front + rear doors |
| BMW 7 Series | G11 / G12 | 2015–2022 | Front + rear doors |
| BMW i3 | I01 | 2013–2022 |
