MAIN FEATURES
High-Power Bass Performance with Pioneer TS-A300D4 A-Series Subwoofer

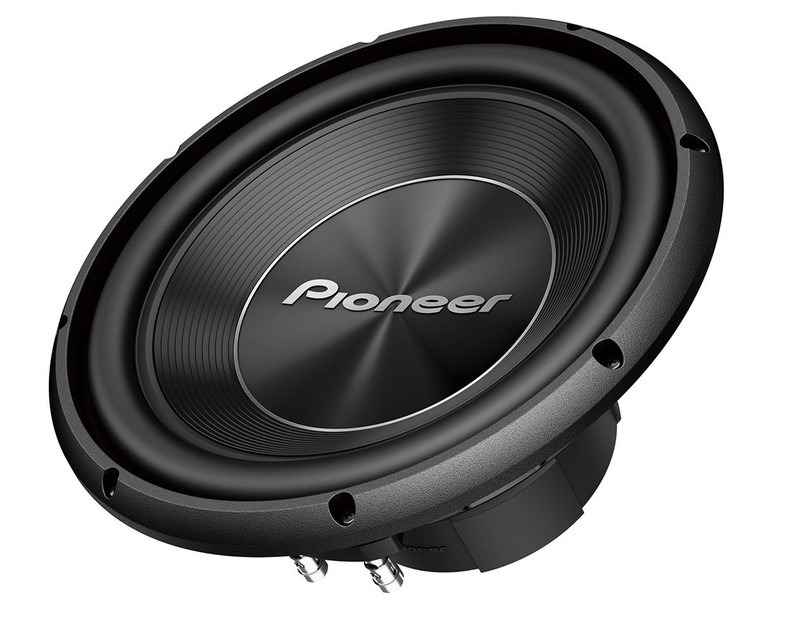

The Pioneer TS-A300D4 is a 12-inch (30cm) A-Series enclosure-type dual voice coil subwoofer designed to deliver powerful, deep, and controlled bass output for advanced car audio systems. Built for high-performance applications, it provides strong low-frequency impact while maintaining clarity and precision across a wide listening range.
Featuring a 4 Ω Dual Voice Coil (DVC) configuration, the TS-A300D4 offers flexible wiring options for optimized amplifier matching and system tuning. Its Glass Fiber & Mica Reinforced Injection Molded PolyPropylene (IMPP™) cone ensures high rigidity and durability, delivering accurate bass response even under high power conditions. With a maximum input power of 1500W and a nominal rating of 400–500W (as per specification set), it is engineered for powerful and dynamic sound performance.
SPECIFICATIONS:
- Series: A-Series
- Subwoofer Type: Enclosure-Type Dual Voice Coil Subwoofer
- Diameter Size: 30 cm (12")
- Maximum Input Power: 1500 W
- Nominal Input Power: 400–500 W
- Frequency Response: 20 Hz – 2,300 Hz
- Sensitivity: 77 dB
- Impedance: 4 Ω Dual Voice Coil (DVC)
- Dimensions: 318 mm × 167 mm
- Cone Material: Glass Fiber & Mica Reinforced IMPP™ Cone
- Magnet Type: Ferrite
- Cut-out Hole: 281 mm
- Mounting Depth: 147 mm
- Recommended Enclosure: 1.25 ft³ / 35.4 L
- Speaker Grill: Not Included
- Weight: 4.65 kg
- CarSoundFit App: Supported
