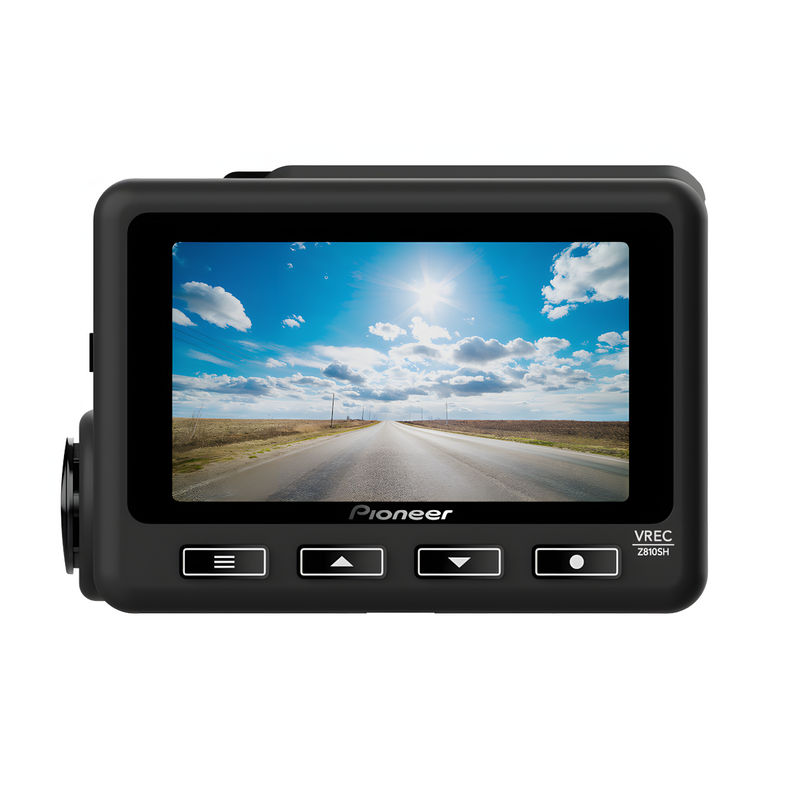

Pioneer VREC-Z810SH 1-Channel Front Dash Camera 4K Full HD 139° Wide Viewing Angle ADAS

MAIN FEATURES

Ultra High-Definition Protection with the Pioneer VREC-Z810SH Dash Camera

Capture every detail of your journey with the Pioneer VREC-Z810SH—a premium front-facing dash camera designed to deliver exceptional 4K video quality and comprehensive vehicle monitoring. Whether you're involved in an incident or need to challenge a claim, the recorded footage provides clear, reliable evidence. In some regions, installing a dash camera may also contribute to reduced insurance premiums.

The VREC-Z810SH features a 3.0" LCD screen and a wide 139° diagonal viewing angle, ensuring broad road coverage with minimal blind spots. Its SONY CMOS sensor with STARVIS™ technology delivers outstanding low-light performance, while High Dynamic Range (HDR) enhances image clarity in challenging lighting conditions such as tunnels or night driving.

This model records in ultra-sharp 4K resolution, making it ideal for capturing fine details like number plates. Built-in GPS ensures accurate speed, location, and time logging, while integrated Wi-Fi allows seamless smartphone connectivity via the Pioneer app. The camera also includes Advanced Driver Assistance Systems (ADAS), such as Lane Departure and Forward Collision Warnings, to support safer driving.

For round-the-clock protection, the VREC-Z810SH supports 24/7 Security Mode, which automatically records when an impact is detected—even after the internal battery is depleted. This feature is enabled through the included Hard Wire Kit, allowing for a clean, integrated installation and continuous power supply. For expanded coverage, an optional rear camera (ND-RC1) is also available.

	1-Channel Dash Cam Front Dash Camera, recording the front
	4K In addition to installing a CMOS sensor that realises high sensitivity, this product records in 4K (3840 x 2160p) with about 8.3 million pixels of high resolution so you can record clear high-quality characters such as a license plate, in the day or night.
	139° Wide Viewing Angle Record larger amounts of information with less blind spots, such as a motorcycle passing from the left or right or a pedestrian or bicycle jumping out.
	Night Time Mode When driving on roads or in tunnels, the license plate and surrounding conditions are clearly recorded. By adopting the SONY CMOS sensor "STARVIS ™" this product is suitable for night time driving.
	SONY "STARVIS" Sensor (Front and Rear) A SONY CMOS sensor "STARVIS™*" is used giving you detailed image and video capture, especially at night. *Front and Rear camera on Pioneer VREC-DZ700DC.
	24/7 Security Mode Additional to Parking Mode, 24/7 Security Mode* will automatically start to record when an impact is detected, after the Dash Camera internal battery goes empty, allowing you to monitor your vehicle 24/7, 365 days a year.  *Security Mode requires a direct connection to the vehicles power supply using Pioneer's Hard Wire Kit.
	GPS Accurately record important information such as your current position, vehicle speed, direction of travel and time.
	Wi-Fi Built-in Wi-Fi to connect your smartphone via an exclusive Pioneer Dash Camera app*'. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone. * Compatible smartphone required. App availability is depending on your country.
	Voice Guidance Voice Guidance provides clear verbal instructions to reduce distraction so you can focus on the road ahead.
	Voice Recognition Pioneer dash camera can be operated by voice control for some functions to help avoid unnecessary distractions whilst driving. (English, French and Russian are supported)
	Rear Camera Pioneer offers an optional rear facing camera (ND-RC1). By using a Sony’s CMOS sensor with STARVIS technology, the camera also allows perfect recording at night.

KEY FEATURES

• 1-Channel Dash Cam
• 4K
• 139° Wide Viewing Angle
• Night Time Mode
• SONY "STARVIS" Sensor (Front and Rear)
• 24/7 Security Mode
• 24/7 Security Mode Recoding Time 60 sec
• Parking Mode Recording Times 60 sec
• Parking Surveillance Recording: 24/7 Security Mode 24/7, 365 days per year
• GPS
• Wi-Fi
• Voice Guidance
• Voice Recognition
• Rear Camera Optional (ND-RC1)
• Image Quality 4K, 2K & 1080p
• Viewing Angle Front Camera: Horizontal 115°, Vertical 60°, Diagonal 139°
• Sensor SONY "STARVIS"
• F-Value Front Camera: F1.8
• Frame Rate (fps) Front Camera: 25 fps/27.5 fps/30 fps
• Camera Type Front
• Screen 3" Full Colour LCD
• Smartphone App Pioneer "Dash Camera Connect" app
• G Sensor
• Sound Recording On/Off
• Recording Modes Normal/Event/Photo/Parking
• Continuous Recording Time First 30 seconds, last 30 seconds
• Event Recording Times First 30 seconds, last 30 seconds
• Manual Recording Times First 30 seconds, last 30 seconds
• Still Image Capture
• Date and Time Setting
• Advanced Driver Assistance Systems (ADAS) Lane Departure Warning System (LDWS)
• Front Collision Warning System (FCWS)
• Stop & Go
• Loop Video Recording
• Automatically Start Recording
• MicroSD Card Capacity 32 GB to 256 GB
• MicroSD Card Compatibility MicroSDXC/microSDHC memory card class 10
• Battery Type Super capacitor
• Power Consumption Approximately 4W (Front Only) 6W (Front & Rear)
• Power Supply Voltage 12Still Image Capture
• Date and Time Setting
• Advanced Driver Assistance Systems (ADAS) Lane Departure Warning System (LDWS)
• Front Collision Warning System (FCWS)
• Stop & Go
• Loop Video Recording
• Automatically Start Recording
• MicroSD Card Capacity 32 GB to 256 GB
• MicroSD Card Compatibility MicroSDXC/microSDHC memory card class 10
• Battery Type Super capacitor
• Power Consumption Approximately 4W (Front Only) 6W (Front & Rear)
• Power Supply Voltage 12V/24V DC
• Power Connection Type Hard wire power cable
• Power Cable Length 3.3m
• Operating Temperature -20° to +60°
• Dimensions (W x H x D) 93.7mm x 63mm x 49.3mm
• Weight 152g (Excluding installation brackets, etc.)
• Graphic User Interface (GUI) Languages [English/French/German/Spanish/Polish/Russian]
• Accessories (Sold Separately) Rear Camera (ND-RC1)
