ACV 611114-01-2 Single DIN HU Fitting Installation Kit For Ford Escort Focus Galaxy Mondeo

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Ford Escort V (AAL/ANL) 02/1995 – 09/2001
• Ford Focus I (DAW/DBW/DFW/DNW) 10/1998 – 10/2001
• Ford Focus I (DAW/DBW/DFW/DNW) 10/2001 – 08/2005
• Ford Galaxy I (WGR) 04/2000 – 05/2006
• Ford Mondeo III (B4Y/B5Y/BWY) 12/2000 – 06/2003*
• Ford Puma I (ECT) 07/1997 – 12/2001

Products:

• Colour: Black
• Head Unit Display Cut-Out: 1-DIN standard
• System Type: Analog connection kit

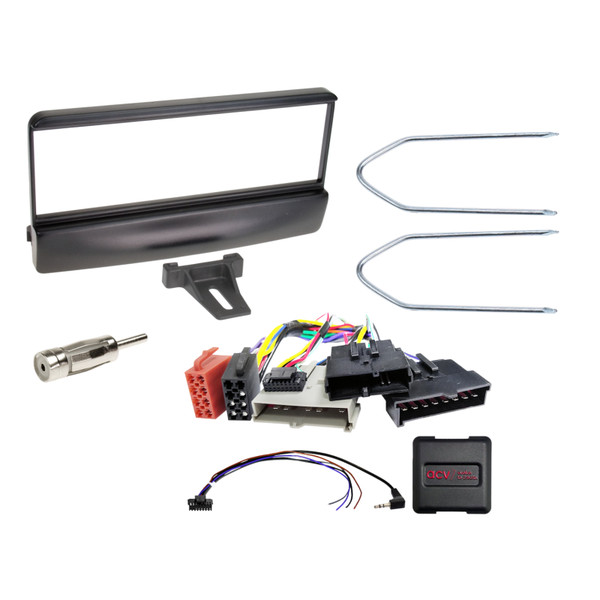

• Includes: 1-DIN radio fascia with radio connection kit and steering wheel remote control




Connection Types

• 8-pin / 8-pin / 17-pin Ford connector
• OEM Steering Wheel Control → 3.5 mm jack / loose cable
• OEM antenna ISO (M) → DIN (M) adapter

Provided Signals

• Steering wheel remote control output
• Basic analog signal integration (no CAN Bus signals)

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Steering wheel control supported
- No CAN Bus integration
- Limited vehicle settings retention
- Some OEM functions may not be supported
- Ford Mondeo Ghia / ST24 models not supported

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Suitable for vehicles with Visteon 2000 / 4050 / 5000 / 6000 / 6006 / 7000 OEM units
• Not suitable for vehicles with Blaupunkt OEM navigation systems
• Radio bezel installation via aftermarket device frame and OEM mounting rails
• DIP switch settings must follow aftermarket device manufacturer instructions




Important Installation Notes

1. Verify compatibility of all connectors before installation
2. Check OEM functions and vehicle settings prior to removal
3. Analog kits may require additional configuration steps
4. Test steering wheel controls and vehicle functions before final installation
5. Installation should be carried out by trained specialists
6. Incorrect installation may affect functionality or void warranty
