MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Ford C-Max (DM2) 11/2003 – 05/2007
- Ford Fiesta (JH1/JD3) 10/2005 – 09/2008
- Ford Focus (DA3) 11/2004 – 03/2008
- Ford Fusion (JU2) 10/2005 – 07/2012
- Ford Galaxy (WA6) 05/2006 – 09/2007*
- Ford Kuga (DM2) 02/2008 – 12/2012*
- Ford S-Max (WA6) 06/2006 – 02/2008*
- Ford Transit (F**6) 07/2006 – 03/2014
- Ford Transit Connect (P*2) 06/2006 – 07/2013
Products:
- Colour: Black
- Head Unit Display Cut-Out: 172 mm × 98.5 mm
- System Type: CAN Bus analog steering wheel integration

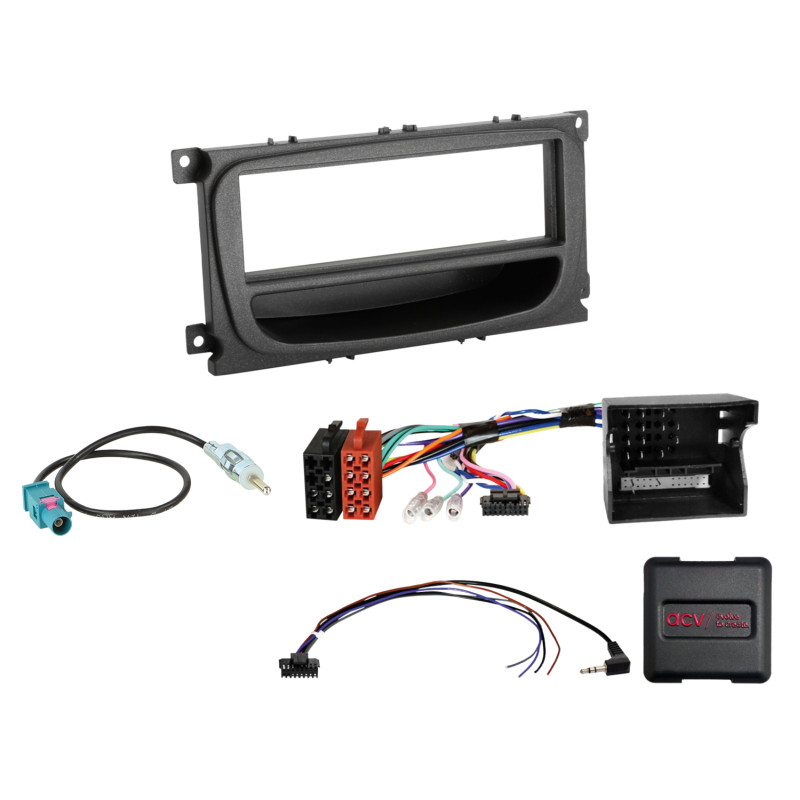

- Includes: 1-DIN radio fascia with radio connection kit and steering wheel remote control
Connection Types
- 40-pin Quadlock Ford CAN Bus connector
- OEM Steering Wheel Control → 3.5 mm jack / loose cable
- OEM Antenna Fakra (M) → DIN (M) adapter
- Power / Signal Lines:
- Blue: +12 V amplifier remote
- Red: +12 V Ignition Terminal 15
- Orange: +12 V Lighting Terminal 58
- Purple/White: +12 V Reverse Signal
- Pink: Speed Signal
- Green: Ground (GND), Handbrake Signal
Provided Signals
- Output current rating: 250 mA max
- For higher current requirements:
- 1 relay coil resistance ≥ 75 ohms
- 2 relays coil resistance ≥ 150 ohms
- Steering Wheel Remote Control included
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Some vehicle functions may be limited or unsupported depending on vehicle equipment, software, and retrofit head unit
- Vehicles with PDC: function test may be limited without OEM device
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles with 5000C / 6000CD / 6006CD / Sony OEM device
- Vehicles with Audio Systems OEM navigation with front card slot
- Vehicles without Pin 16 +12V ignition current Terminal 15
- Vehicles without 7" OEM color navigation with integrated climate control
- OEM device design may change from rectangular to oval during ongoing production; bezel modification may be necessary
- DIP switch settings must follow aftermarket device manufacturer instructions (see user manual)
- Reimported vehicles or vehicles with different software may show reduced compatibility
Important Installation Notes
- Compare adapter connectors with those in your vehicle for compatibility
- Verify all vehicle functions, settings, and SWC operation before final assembly
- All connection changes and modifications must be performed by trained specialists
- Improper handling may void warranty or damage vehicle, interface, or retrofit device
