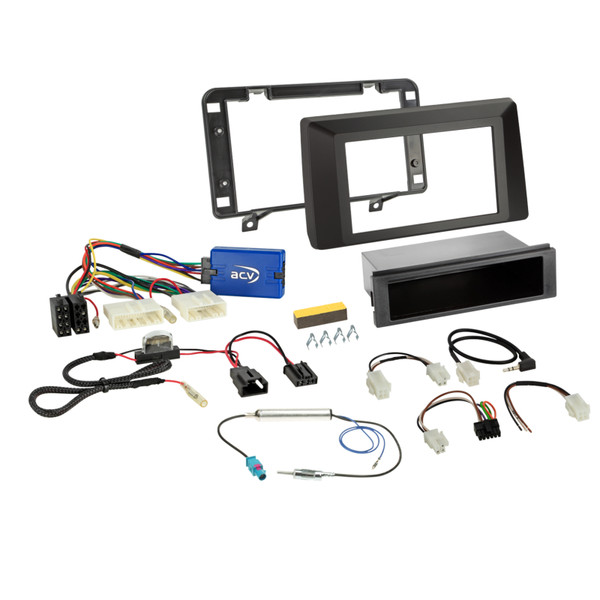

ACV 611250-21-1 Single & Double DIN HU Fitting Installation Kit For Dacia Duster [MK2] (2021-2024)

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Dacia Duster (SR) 09/2021 – 07/2024



Products:

• Colour: Black
• Head Unit Display Cut-Out: 2-DIN with storage compartment
• System Type: Analog / Non-CAN bus

Connection Types

• 20-pin / 32-pin Nissan connector – Main vehicle interface
• OEM steering wheel remote control → 42ctmultilead3 – Steering wheel connection
• OEM antenna Fakra (male) → DIN (male) – Radio antenna adapter
• Cigarette lighter Y-cable
• Blue wire: +12V antenna remote

Provided Signals

• Steering wheel remote control signal
• Red: +12V ignition terminal 15 via OEM cigarette lighter (3A)
• Red: +12V cigarette lighter power (5A / 60W max.)
• Note: Reimported vehicles or vehicles with different software may show functional limitations

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Steering wheel remote control supported
- Driver assistance systems (e.g., Trailer Assist, eCall) not supported

OEM Head Unit Compatibility Notes

This kit is suitable for:

• OEM radio preparation with 20-pin / 32-pin Nissan connector
• Vehicles without 12-pin / 24-pin / 6-pin Dacia connector
• Vehicles without +12V ignition power terminal 15




Important Installation Notes

1. Compare adapter connectors shown with those in your vehicle to ensure compatibility
2. Check OEM device functions before installation
3. Disconnect OEM device while power is off
4. Configure interface settings and hardware while de-energized
5. Connect radio connection cable according to retrofit device instructions
6. Connect all other connections according to retrofit device instructions
7. Connect the entire system to the vehicle with live connection last
8. Configure interface software and retrofit head unit as per instructions (steering wheel remote control, camera, hands-free system, antenna phantom power, etc.)
9. Test steering wheel controls and vehicle functions before final installation
10. Any wiring modifications or alternative connections must be carried out by trained personnel only
11. Incorrect installation may void warranty or affect vehicle systems
