ACV 621001-10-1 Double DIN Fitting Installation Kit For Alfa Romeo Giulietta 2013–2021

MAIN FEATURES

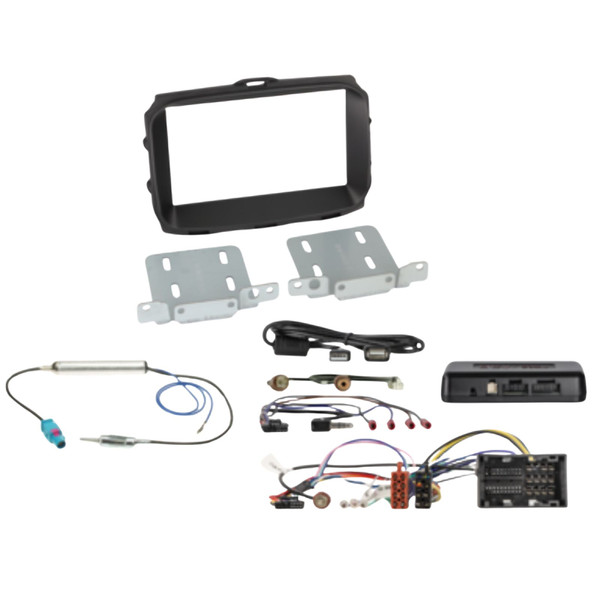

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Alfa Romeo Giulietta (2013–2021)

Products:

• Colour: Black
• Head Unit Display Cut‑Out: 173 mm × 98.5 mm
• System Type: CANBUS Vehicle

Connection Types

• 52‑Pin Fiat Connector – Main vehicle interface
• OEM SWC → 3.5 mm Jack / Loose Wire – Steering wheel control connection
• OEM Antenna Fakra (F) → DIN (M) – Radio antenna adapter
• OEM Rear‑View Camera → RCA (M) Yellow – Camera video feed
• USB‑A Extension – Software update interface for the retrofit head unit

Provided Signals

• Red: +12 V Ignition (Clamp 15)
• Orange: +12 V Illumination (Clamp 58)
• Purple/White: +12 V Reverse Gear Signal
• Pink: Speed Pulse Signal
• Green: Ground (Park Brake Signal)
• Blue: +12 V Antenna Remote Output

Rear‑View Camera Integration

• Activate and configure the rear‑view camera input in the retrofit head unit.
• i‑Dapter Connections:
• Purple/White: +12 V Reverse Gear Signal
• RCA (M) Ochre: Camera Input to Retrofit HU
• If the camera image or i‑Dapter visualisation does not appear:
• Add an additional GND connection to the outer shield of the RCA cable (camera side and HU side).
• i‑Dapter Settings: Press and hold the Track Up or Track Down steering wheel button to access settings.



Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Some vehicle settings
- Some vehicle information displays
- High‑beam assist
- Driver assistance system functions
- Start/Stop system adjustment

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Vehicles originally equipped with UConnect / Continental Mopar OEM head units
• Vehicles without the 7" OEM display
• Vehicles with OEM rear‑view camera wiring:
• Pin 31: Video + (Red)
• Pin 32: Video – (White)
• Pin 33: Shield (Black)



Important Installation Notes

1. Compare the connectors shown with those in your vehicle to ensure correct fitment.
2. Check whether one of the listed OEM head units was originally installed.
3. Confirm vehicle functions, settings access, and SWC operation before final assembly.
4. Reimported vehicles or vehicles with different software versions may show reduced compatibility.
5. Follow the DIP switch instructions for both:
6. The OEM device (refer to manual)
7. The retrofit head unit manufacturer (refer to manual)
