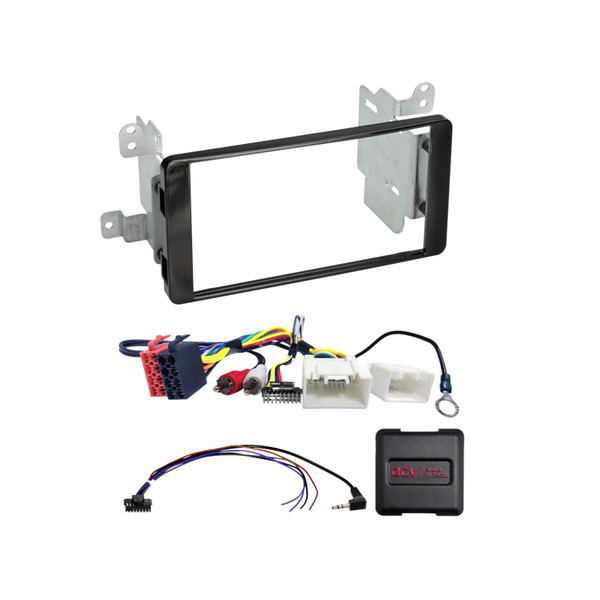

ACV 621200-20-1 Double DIN HU Fitting Installation Kit For Fiat Fullback & Mitsubishi L200 Triton

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Fiat Fullback (KT0T) 08/2016 – 07/2020
• Mitsubishi L200 (KJ0T) 10/2015 – 08/2019
• Mitsubishi L200 (KJ0T) 09/2019 – 10/2022

Products:

• Colour: Piano Black
• Installation cutout for radio display: 173 mm × 100 mm
• System Type: Analog / CAN Bus Vehicle

Connection Types

• 18-pin / 20-pin Mitsubishi Connector – Main vehicle interface
• OEM Steering Wheel Remote Control → 3.5 mm Jack / Loose Wire
• OEM AUX → RCA (male) red/white
• Black: Ground Terminal 31
• *Vehicles with Rockford Fosgate OEM sound system → Item: 42xmt009

Provided Signals

• Steering wheel remote control supported

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Trailer Assist
- eCall
- Other driver assistance system functions
- Some vehicle settings and information displays

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Suitable for vehicles with Mitsubishi or Fiat OEM head units.
• Check the correct pinout of OEM AUX before installation.
• Reimported vehicles or vehicles with different software versions may show reduced compatibility.
• Ensure the adapter connectors match those in your vehicle visually and technically.
• Verify if one of the listed original factory radios was installed before installation.




Important Installation Notes

1. Check all operating functions and vehicle setting functions of the OEM device.
2. Remove the OEM device with power disconnected.
3. Configure interface settings and hardware before connecting power.
4. Connect the radio connection cable and all other components according to the aftermarket device instructions.
5. Connect the vehicle power supply last during installation.
6. Configure interface software according to the instructions in the item text and operating instructions.
7. Configure the aftermarket device according to its operating instructions.
8. Test steering wheel remote control and vehicle functions.
