MAIN FEATURES

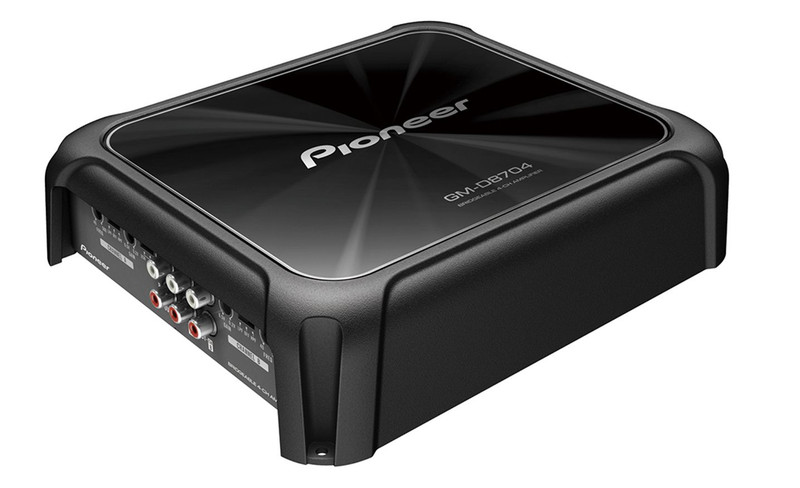

Compact High-Efficiency Power with Pioneer GM-D8704 4-Channel Class-FD Amplifier
The Pioneer GM-D8704 is a compact and efficient 4-channel Class-FD car amplifier designed to deliver clean, powerful sound performance for full-range speaker systems. Using Pioneer’s advanced Class-FD digital technology, it ensures high output with reduced power consumption and minimal heat generation, making it ideal for both factory upgrades and custom audio setups.
With a total maximum output of 1200W, the GM-D8704 offers flexible configuration options including 4-channel stereo operation or bridged mode for increased power delivery. Its stable low-impedance handling down to 1 Ω, wide frequency response, and low distortion ensure accurate sound reproduction across all listening levels. The compact chassis allows easy installation even in space-limited vehicles.
SPECIFICATIONS:
- Amplifier Type: Class-FD Digital Amplifier
- Channels: 4-Channel
- Maximum Power Output: 1200 W
- Continuous Output Power:
- 100 W × 4 (4 Ω)
- 150 W × 4 (2 Ω)
- 125 W × 4 (1 Ω)
- 300 W × 2 (4 Ω Bridged)
- Frequency Response: 10 Hz – 50 kHz
- Total Harmonic Distortion (THD): < 0.05%
- Signal-to-Noise Ratio: > 95 dB
- Load Impedance Capability: 1–8 Ω
- High Pass Filter: Yes
- Low Pass Filter: Yes
- Speaker Terminals: Block-Type
- Multi Block Terminal: Yes
- Dimensions: 252 mm (W) × 60 mm (H) × 215 mm (D)
