MAIN FEATURES

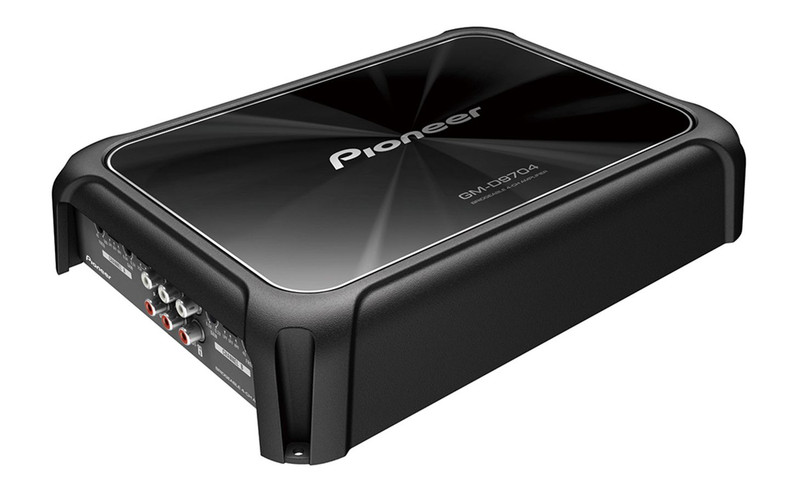

High-Power Performance with Pioneer GM-D9704 4-Channel Class-FD Amplifier
The Pioneer GM-D9704 is a high-performance 4-channel Class-FD car amplifier engineered to deliver exceptional power, efficiency, and sound quality for advanced car audio systems. Featuring Pioneer’s Class-FD digital amplifier technology, it offers high output with reduced power consumption and heat generation, making it ideal for driving speakers or component systems with outstanding clarity and control.
Delivering up to 1600W maximum power, the GM-D9704 provides flexible configuration options with support for 4-channel stereo operation or 2-channel bridged mode. It features built-in High Pass and Low Pass filters for precise system tuning, along with stable 1-ohm operation for enhanced installation flexibility. Its compact chassis, low distortion, and high signal-to-noise ratio ensure clean, dynamic audio performance for any custom car audio setup.
SPECIFICATIONS:
- Amplifier Type: Class-FD Digital Amplifier
- Channels: 4-Channel
- Maximum Power Output: 1600 W
- Continuous Output Power:
- 130 W × 4 (4 Ω)
- 200 W × 4 (2 Ω)
- 130 W × 4 (1 Ω)
- 400 W × 2 (4 Ω Bridged)
- Frequency Response: 10 Hz – 50 kHz
- Total Harmonic Distortion (THD): < 0.05%
- Signal-to-Noise Ratio: > 95 dB
- Load Impedance Capability: 1–8 Ω
- High Pass Filter: Yes
- Low Pass Filter: Yes
- Speaker Terminals: Block-Type
- Multi Block Terminal: Yes
- Dimensions: 302 mm (W) × 60 mm (H) × 215 mm (D)
