ACV 611020-07-1 Single DIN HU Fitting Installation Kit For BMW 5 Series [E39] (1996-2004)

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• BMW 5 Series (E39) 01/1996 – 05/2004
• BMW X5 (E53) 03/2000 – 11/2006

Products:

• Colour: Black
• Head Unit Display Cut-Out: 1-DIN standard
• System Type: CANBUS Vehicle

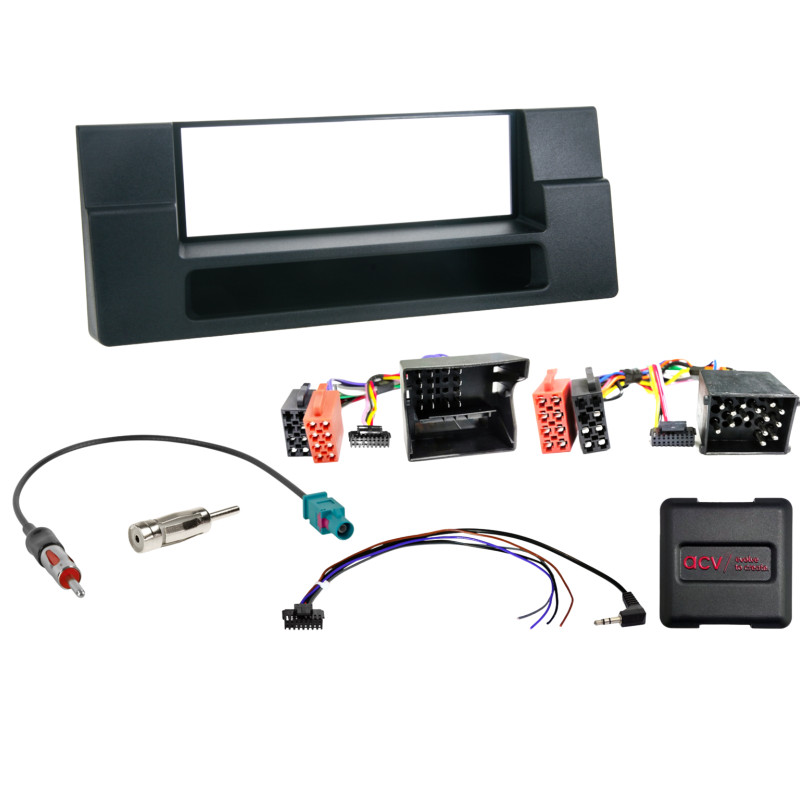

• Includes: 1-DIN radio fascia with compartment, radio connection kit, and steering wheel remote control




Connection Types

• 17-pin BMW I-Bus connector → Main vehicle interface
• 40-pin Quadlock BMW connector → Main vehicle interface
• OEM Steering Wheel Control → 3.5 mm jack / loose cable
• OEM Antenna Fakra (F) → DIN (M) radio adapter

Provided Signals

• Red: +12 V Ignition (Clamp 15)
• Orange: +12 V Illumination (Clamp 58)
• Purple/White: +12 V Reverse Gear Signal
• Pink: Speed Pulse Signal
• Green: Ground (Park Brake Signal)
• Blue: +12 V Antenna Remote Output

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Trailer Assist
- eCall
- Other driver assistance systems
- Some vehicle settings
- Some vehicle information displays
- High-beam assist
- Start/Stop system adjustment

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Suitable for vehicles originally equipped with Business OEM device
• Vehicles without Professional Navigation
• Vehicles without on-board computer
• Vehicles without OEM sound system
• OEM cover plate can be closed with aftermarket devices with detachable control unit
• Remove OEM additional components: CD changer, TV tuner, telephone module
• DIP switch settings must follow aftermarket device manufacturer instructions (see operating instructions)





Important Installation Notes

1. Compare adapter connectors with those in your vehicle for compatibility
2. Verify all vehicle functions, settings, and SWC operation before final assembly
3. Reimported vehicles or vehicles with different software may show reduced compatibility
4. Follow interface and aftermarket device instructions for wiring and configuration
5. All connection changes and modifications must be performed by trained specialists
6. Improper handling may void the product warranty or damage vehicle, interface, or aftermarket device
