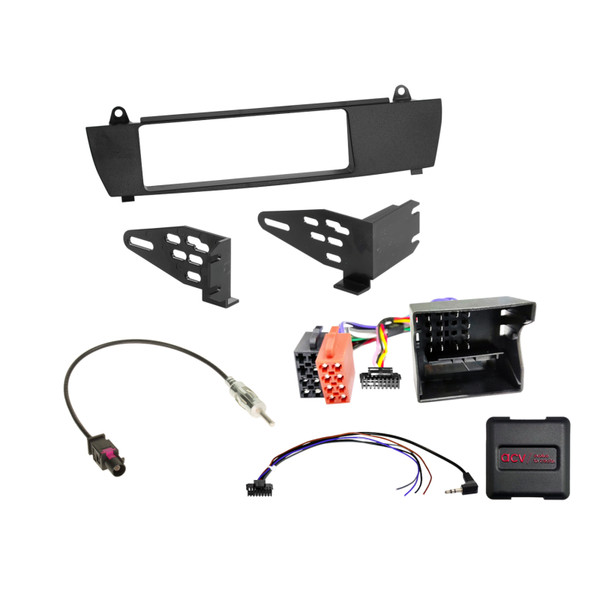

ACV 611023-08-1 Single DIN HU Fitting Installation Kit For BMW X3 [E83] (2004-2010) Black

(No reviews yet)

SKU: ACV-611023-08-1

GTIN: 4026724345612

MPN: 611023-08-1

1‑DIN black fascia for BMW X3 E83 (2004–2010)
Trim panel, ISO loom and antenna adapter supplied
Supports OEM steering wheel controls (where applicable)
Direct fit for factory dashboard layout
Provides ignition, lighting, reverse, speed, ground signals (250 mA max)

We ship in-stock items the same day when ordered before 3pm. For out-of-stock products, call to backorder. We’ll notify you as soon as it's ready to ship.

Our Price:

£92.99

RRP: £114.99

Our Price:

£77.49

RRP: £95.82

1 Available

Adding to cart… The item has been added

Add to Cart

Next-Day Delivery Available

Get it by of .

Free Standard Delivery

To UK mainland on orders over £30.

Collection Available

Call to arrange pickup from us.

Call: 01691 886130

Call for back-orders or large quantities.

Description
Shipping
0 Reviews

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

BMW X3 (E83) 02/2004 – 08/2010

Products:

Colour: Black
Head Unit Display Cut-Out: 1-DIN standard
System Type: CANBUS Vehicle
Includes: 1-DIN radio fascia with radio connection kit and steering wheel remote control

Connection Types

40-pin Quadlock BMW connector → Main I-Bus interface
OEM Steering Wheel Control → 3.5 mm jack / loose cable
OEM Antenna Fakra (M) → DIN (M) radio adapter

Provided Signals

Red: +12 V Ignition Terminal 15
Orange: +12 V Lighting Terminal 58
Purple/White: +12 V Reverse Signal
Pink: Speed Signal
Green: Ground (GND), Handbrake Signal

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Trailer Assist
- eCall
- Other driver assistance systems
- Some vehicle settings
- Some vehicle information displays
- High-beam assist
- Start/Stop system adjustment

OEM Head Unit Compatibility Notes

This kit is suitable for:

Suitable for vehicles with OEM unit with display integrated
Vehicles with OEM unit body installed on the left
Vehicles without OEM dashboard monitor or OEM navigation monitor
Vehicles without OEM sound system
Remove OEM additional components: CD changer, TV tuner, telephone module
DIP switch settings must follow aftermarket device manufacturer instructions (see operating instructions)

Important Installation Notes

Compare adapter connectors with those in your vehicle for compatibility
Verify all vehicle functions, settings, and SWC operation before final assembly
Reimported vehicles or vehicles with different software may show reduced compatibility
Follow interface and retrofit device instructions for wiring and configuration
All connection changes and modifications must be performed by trained specialists
Improper handling may void the product warranty or damage vehicle, interface, or retrofit device

UK Deliveries: Free UK mainland delivery applies to orders over £30 (exceptions apply to remote regions and islands, which will see a surcharge at checkout).

Orders Under 2kg: Most in-stock items arrive in 2–3 working days. Items held by suppliers take 4–6 working days. (Note: Saturday is not a working day).

Orders Over 2kg: Dispatched via trusted couriers including AMAZON Shipping, Royal Mail, DPD, and UPS.

Royal Mail Specifics: Royal Mail aims to deliver in 1–3 working days, though this is not guaranteed. If your item has not arrived after 7 days, please contact us. We can only replace missing items after 14 days have passed.

More information (including international delivery on our Delivery Information page.

Description

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

BMW X3 (E83) 02/2004 – 08/2010

Products:

Colour: Black
Head Unit Display Cut-Out: 1-DIN standard
System Type: CANBUS Vehicle
Includes: 1-DIN radio fascia with radio connection kit and steering wheel remote control

Connection Types

40-pin Quadlock BMW connector → Main I-Bus interface
OEM Steering Wheel Control → 3.5 mm jack / loose cable
OEM Antenna Fakra (M) → DIN (M) radio adapter

Provided Signals

Red: +12 V Ignition Terminal 15
Orange: +12 V Lighting Terminal 58
Purple/White: +12 V Reverse Signal
Pink: Speed Signal
Green: Ground (GND), Handbrake Signal

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Trailer Assist
- eCall
- Other driver assistance systems
- Some vehicle settings
- Some vehicle information displays
- High-beam assist
- Start/Stop system adjustment

OEM Head Unit Compatibility Notes

This kit is suitable for:

Suitable for vehicles with OEM unit with display integrated
Vehicles with OEM unit body installed on the left
Vehicles without OEM dashboard monitor or OEM navigation monitor
Vehicles without OEM sound system
Remove OEM additional components: CD changer, TV tuner, telephone module
DIP switch settings must follow aftermarket device manufacturer instructions (see operating instructions)

Important Installation Notes

Compare adapter connectors with those in your vehicle for compatibility
Verify all vehicle functions, settings, and SWC operation before final assembly
Reimported vehicles or vehicles with different software may show reduced compatibility
Follow interface and retrofit device instructions for wiring and configuration
All connection changes and modifications must be performed by trained specialists
Improper handling may void the product warranty or damage vehicle, interface, or retrofit device
