MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Skoda Fabia [MK3] (2014–2022)

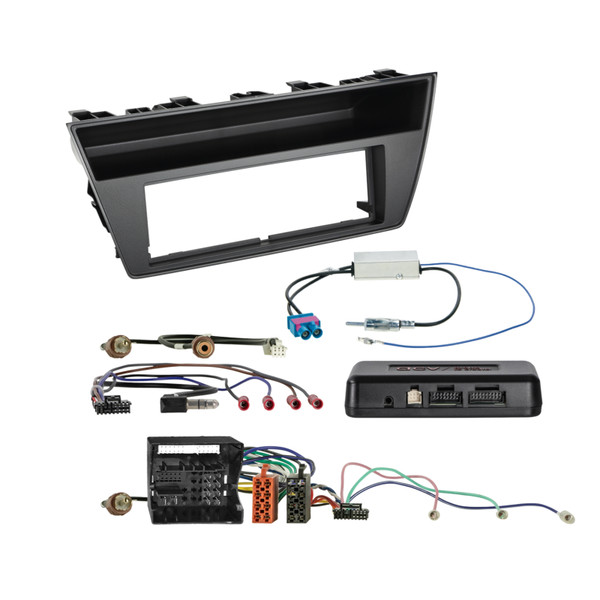

Products:
- Colour: Black
- Head Unit Display Cut-Out: 1-DIN with storage compartment
- System Type: i-dapter radio connection kit
Connection Types
- CAN bus: 52-pin Quadlock VAG connector
- Steering wheel remote control → 3.5mm jack / loose cable
- OEM antenna Fakra (f) → DIN (m)
- OEM reversing camera → RCA (m)
- +12V antenna remote supply voltage
- i-adapter signals: Purple/White → +12V reversing signal, RCA (m) ochre → reversing camera input
- Steering wheel remote control support, Climatronic visualization, Optical PDC visualization
Provided Signals
- Red: +12V ignition terminal 15
- Orange: +12V lighting terminal 58
- Purple/White: +12V reverse signal
- Pink: Speed signal
- Green: Ground (GND), Handbrake signal
- Output current rating: 250 mA max
- Current requirement > 250 mA: 1 relay coil ≥ 75 ohms; 2 relays ≥ 150 ohms
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Compatible with OEM steering wheel remote control
- Vehicle settings, CAR menu, PDC, Climatronic partially supported depending on OEM equipment and software
- Not compatible with vehicles with OEM sound system, radio preparation only, or without factory pre-installation of steering wheel remote control / speakers / radio
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Compare adapter connectors with OEM radio for visual and technical compatibility
- Check vehicle menu and settings prior to installation
Important Installation Notes
- Verify all OEM device functions before installation
- Disconnect OEM device with power off
- Connect i-adapter, antenna, and optional camera according to included instructions
- Connect the entire installation to the vehicle with live connection last
- Configure interface and retrofit device software according to instructions
- Test vehicle functions and steering wheel controls before final assembly
- Wiring modifications must be done by trained specialists
- Incorrect installation may void product warranty or affect vehicle systems
