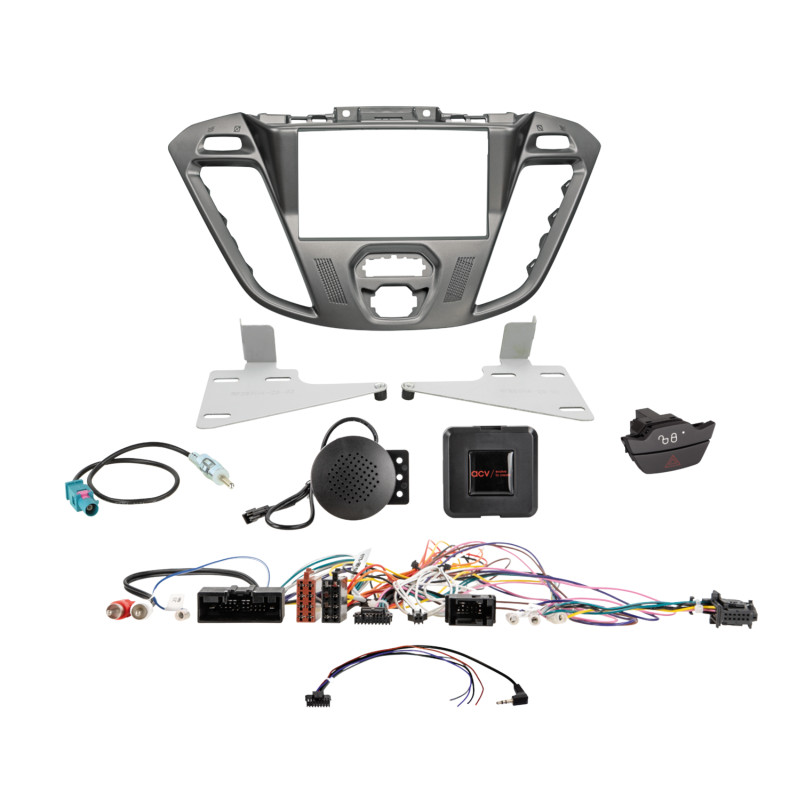

MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Ford Transit Custom (FAC/FDA) 08/2012 – 06/2016
- Ford Transit Tourneo Custom (FAC/FAD) 08/2012 – 06/2016
Additional OEM Parts From Ford that maybe required:
- 1799698 Jewels Lamp/Passenger Airbag Warning (If Passenger Airbag Fitted)
- 1832265 Card Holder (If No Passenger Airbag)
- 1519127 Hazard/Door Lock Switch
Products:
- Colour: Phoenix Silver
- Installation cutout for radio display: 172 mm × 98.5 mm
- System Type: CANBUS Vehicle (24-Pin Ford connector)
Connection Types
- 24-Pin Ford connector – Main CAN bus interface
- OEM steering wheel remote control → 3.5 mm jack / loose cable
- OEM antenna Fakra Z (M) → DIN (M) passive
- AMP display connector → OEM display
- OEM display connector → Interface
- OEM AUX → RCA (M) red / white
- Blue: +12V antenna remote
Provided Signals
- Red: +12 V Ignition (Terminal 15)
- Orange: +12 V Illumination (Terminal 58)
- Purple/White: +12 V Reverse Signal
- Pink: Speed Signal
- Green: Ground (GND) / Handbrake Signal
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Steering wheel remote control supported
- SYNC function not supported
- Emergency call deactivated when Bluetooth is deactivated
- OEM navigation interface partially incompatible
- Some driver assistance systems (Trailer Assist, eCall) not supported
- Steering wheel remote control supported
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles with Euro 5 emissions standard
- Vehicles with steering wheel OK and/or voice function button
- Vehicles with OEM display
- Vehicles with CD player under the monitor
Important Installation Notes
- Compare all connectors visually and technically before installation
- Verify OEM unit functions and vehicle settings before removal
- Configure interface hardware and DIP switches with power off
- Connect the entire installation to the vehicle with the live connection last
- After installation, configure interface software and retrofit device settings
- Test steering wheel remote control and vehicle functionality before final assembly
- In case of malfunction, revert to OEM device and allow CAN bus to enter standby mode before reconnecting
- All wiring modifications must be performed by trained personnel only
- Modifications to the pre-assembled wiring harness may void the product warranty
