ACV 621320-26-1 Double DIN HU Fitting Installation Kit With Pocket For MAN TGE & VW Crafter

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• MAN TGE 2017 – 2025* / **
• VW Crafter II (SY/SZ) 03/2017 – 2025* / ***
• VW Grand California (SY/SZ) 03/2019 – 2025* / **

Products:

• Colour: Black
• Head Unit Display Cut-Out: 182.5 mm × 113.5 mm
• System Type: CANBUS Vehicle

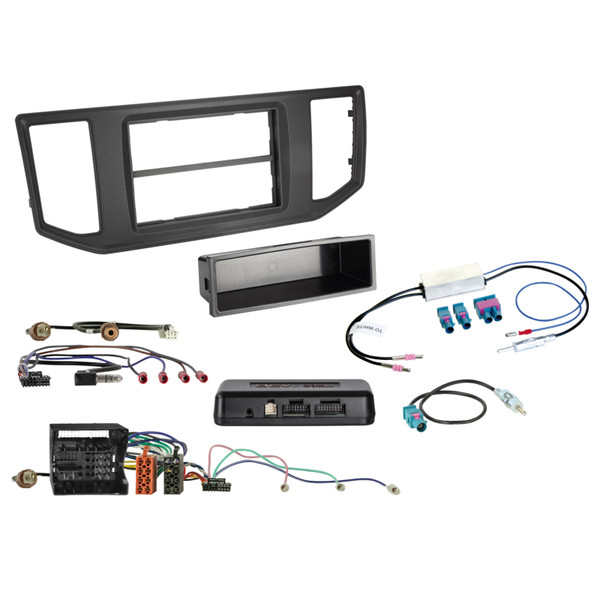

• 2-DIN radio fascia MAN TGE / VW Crafter / Grand California – Item: 381320-26-1-0
• i-adapter MAN TGE / Seat / Skoda / VW 52-pin Quadlock Multilead – Item: 43xvw04
• Antenna Adapter Fakra (M) → DIN (M) Passive Loose – Item: 1524-01-0
• Antenna Adapter Fakra (M) (Set) → DIN (M) 12V Phantom Loose – Item: 1524-70-0

Connection Types

• 52-Pin Quadlock VAG Connector – Main vehicle interface
• OEM Steering Wheel Control → 3.5 mm Jack / Loose Cable – Steering wheel control connection
• OEM Antenna Fakra (Female) → DIN (Male) – Radio antenna adapter
• OEM Reversing Camera → RCA (Male) Ochre – Camera video feed

Provided Signals

• Red: +12V Ignition Terminal 15
• Orange: +12V Lighting Terminal 58
• Purple/White: +12V Reverse Signal
• Pink: Speed Signal
• Green: Ground (GND) Handbrake Signal
• Output Load Capacity: 250 mA max.
• Current requirement greater than 250 mA:
• 1 relay coil resistance 75 Ohms min.
• 2 relays coil resistance 150 Ohms min.

Rear‑View Camera Integration

• Activate and configure reversing camera input in the retrofit device menu.
• i-Dapter Connections:
• Purple/White: +12V Reversing Signal
• RCA (M) Ochre: Reversing Camera Input to Retrofit Device
• Visualization:
• OPS → Retrofit Device Reversing Camera Input Visualization
• Climatronic → Retrofit Device Reversing Camera Input Visualization
• +12V reversing signal is deactivated from 3 km/h.
• Vehicles with steering wheel remote control:
• Press and hold the Track button to access i-adapter settings
• Alternatively use optional item: 43x-remote
• Vehicles without steering wheel remote control:
• i-adapter settings require optional remote control accessory – Item: 43x-remote




Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Some vehicle settings may not be supported
- Some vehicle functions may not be supported
- Some vehicle information may not be visualized
- Trailer Assist may not be supported
- eCall may not be supported

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Vehicles with MIB-II platform
• Vehicles with 8" Media Advanced OEM unit
• Vehicles with 8" Media Plus OEM unit / Composition Media OEM unit
• Check antenna phantom power supply before installation:
• Vehicles with +12V antenna system → Item: 1524-70
• Vehicles with +8.5V antenna system → Item: 1524-01
• Optional: Antenna adapter Fakra (M) (Dual) → DIN (M) 8.5V → Item: 1524-29
• Installation format:
• 1-DIN device → installation with storage compartment
• 2-DIN device with max installation depth 55 mm → installation without center bar




Important Installation Notes

1. Compare the adapter connectors shown with those in your vehicle to ensure visual and technical compatibility.
2. Check whether one of the listed OEM factory radios was originally installed in your vehicle.
3. Before final assembly:
4. Check vehicle functions
5. Check vehicle settings
6. Verify steering wheel remote control operation
7. Reimported vehicles or vehicles with different software versions may show reduced compatibility.
8. Follow DIP switch instructions for the retrofit device manufacturer (see operating instructions).
9. Installation and wiring modifications must be carried out exclusively by trained personnel.
10. Modifications to wiring harness or alternative connections must be checked against the vehicle wiring diagram before connection.
11. Modifications to pre-assembled wiring harness may void the product warranty.
