MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- VW Caravelle (7H) 10/2004 - 09/2009**
- VW Caravelle (7H) 09/2009 - 05/2015*
- VW Multivan (7H) 02/2003 - 09/2009
- VW Multivan (7H) 09/2009 - 05/2015*
- VW T5 Transporter (7H) 08/2003 - 09/2009**
- VW T5 Transporter (7H) 09/2009 - 05/2015*/**
- VW Touareg I (7L) 06/2003 - 11/2006***
- VW Touareg I (7L) 11/2006 - 02/2010

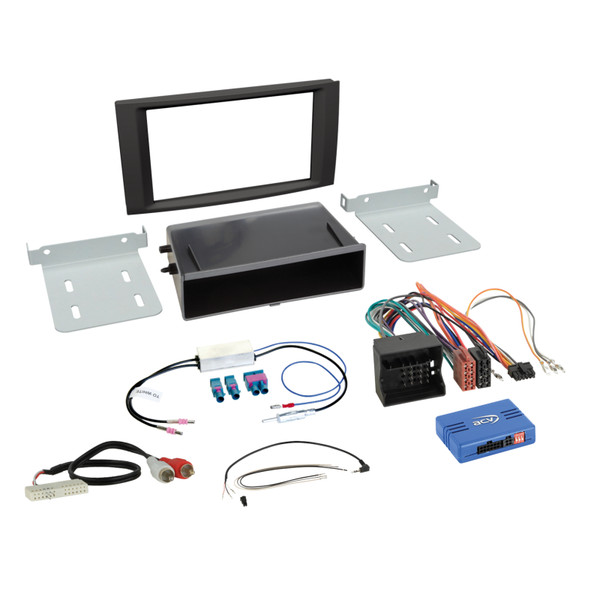

Products:
- 2-DIN radio fascia with compartment, black
- 2-DIN cut-out: 173 mm × 98 mm
- Steering wheel remote control connection kit (42arc100 cable)
- 40-pin VW Quadlock → ISO / Fakra → DIN
- Active system adapter VW T5/Touareg Quadlock MQS insert
- Antenna adapter Fakra (male) → DIN (male) / 12V Phantom
Connection Types
- CAN bus 40-pin Quadlock → ISO
- OEM Steering Wheel Remote Control → 3.5 mm Jack / Key1/Key2/GND connections
- OEM Antenna Fakra (male) → DIN (male)
- Supports multiple aftermarket radio brands: Alpine, Blaupunkt, Clarion, Digital Dynamics, ESX, JVC, Kenwood, Pioneer, Snooper, Sony, XZent, Zenec
Provided Signals
- Pink: +12V ignition terminal 15 (1.5A max)
- Orange: +12V lighting terminal 58 (0.1A max)
- White: +12V reverse signal (1.5A max)
- Yellow/Green, Yellow/Red: speed signal
- Steering wheel remote control signals
- CAN bus activation for OEM sound system
- Output current rating: 250 mA max; higher currents require relay coil resistance 75–150 Ω
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- No vehicle functions or OEM settings are supported
- Some functions may be omitted or replaced depending on vehicle and aftermarket unit software
- Reimported vehicles or vehicles with different software may show incompatibilities
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Suitable for vehicles without OEM sound system, Golf V/IV style OEM units, RCD/RNS OEM radios
- Steering wheel remote control supports multiple aftermarket radio brands via DIP switch 42cx401
Important Installation Notes
- Verify all OEM device functions and vehicle settings before removal
- Disassemble OEM device with power off
- Check all interface connections for correctness and continuity
- Configure interface settings and hardware with power off
- Connect all radio and interface cables according to aftermarket device instructions
- Connect entire installation to the vehicle with live connection last
- Configure interface software and DIP switch settings according to the radio manufacturer
- Test steering wheel remote control and vehicle functions
- Interface modifications, wiring changes, and additional connections must be performed exclusively by trained specialists
- Any changes are at your own risk and may void warranty or cause damage
