MAIN FEATURES
Upgrade your vehicle safety with ATD PRO Reverse Cameras
For over a decade, the ATD PRO Reverse Camera range has been the preferred choice of trade professionals, offering exceptional image quality, seamless integration and outstanding value. Designed to enhance parking safety and convenience, these premium cameras deliver crisp high-definition video, a wide viewing angle and reliable all-weather performance.
Crisp 30FPS high-definition imaging for a clearer, wider and more detailed reversing view. Easily switched over to NTSC.

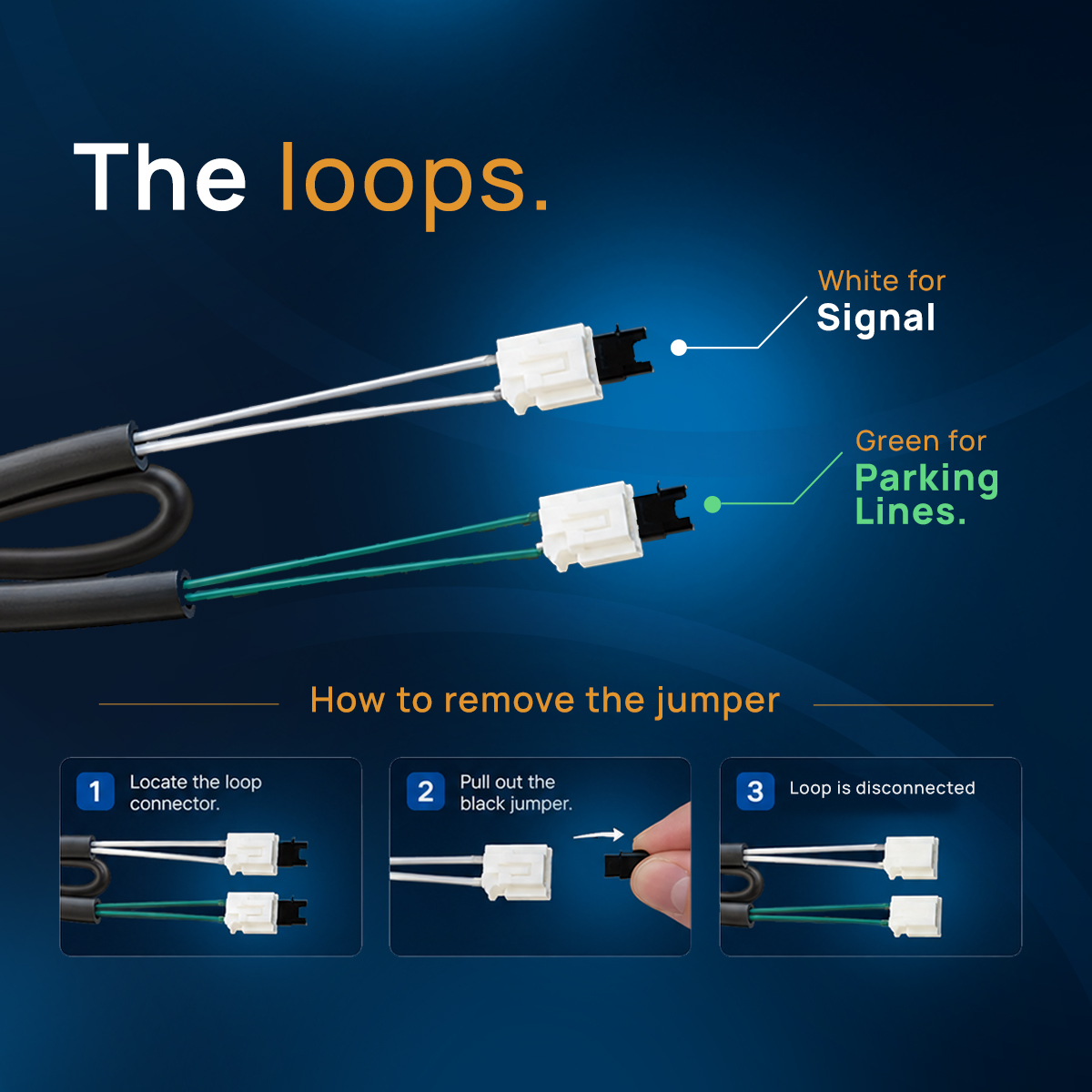

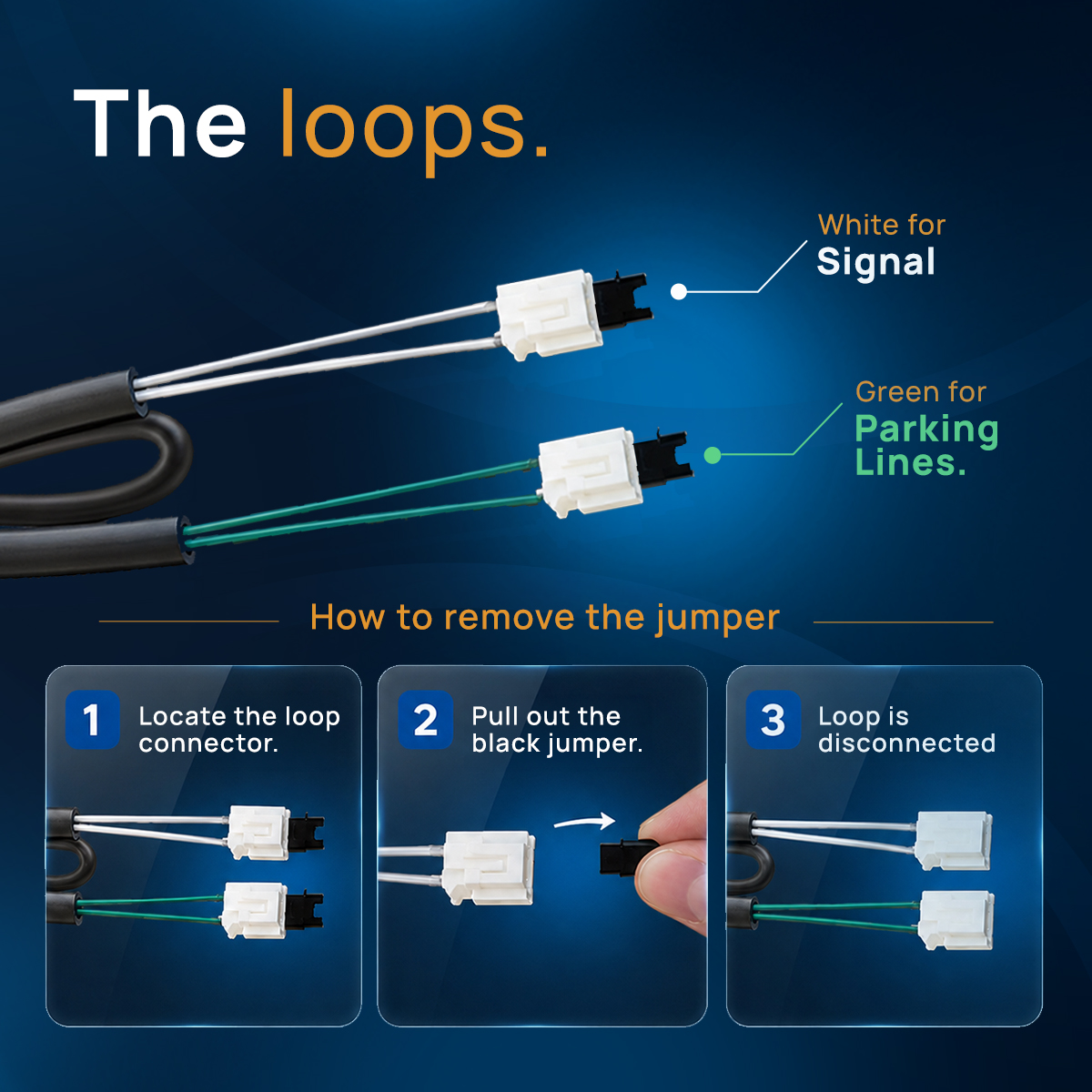

Quickly configure the video signal and switch fixed parking guide lines on or off with a simple jumper removal from the loop.
Neat camera pass-through connection before adapting to standard RCA video and DC power for easy connection.
Professional-Grade Parking Assistance
The ATD PRO range combines advanced imaging technology with practical installation features to deliver dependable reversing assistance for everyday driving. A high-performance SMARTSENS SC1345 CMOS image sensor and quality 14mm lens provide improved visibility in low-light conditions, while the wide 150° horizontal viewing angle gives a significantly broader field of view than conventional reverse cameras.
Designed for compatibility with a wide range of aftermarket displays and head units, ATD PRO cameras support both modern 1080p AHD systems and traditional CVBS NTSC video formats. This makes them suitable for both new installations and upgrade projects.
Premium Features

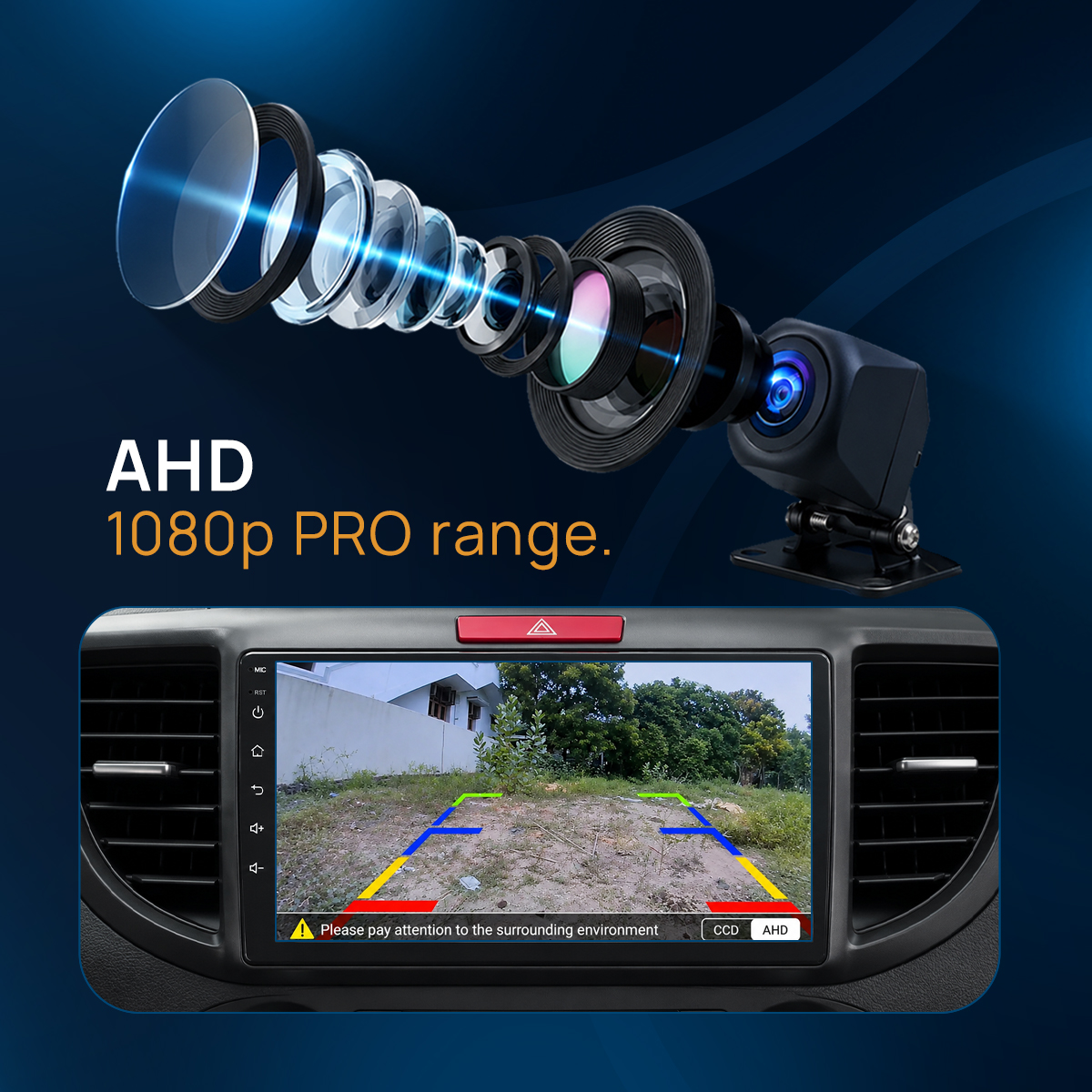

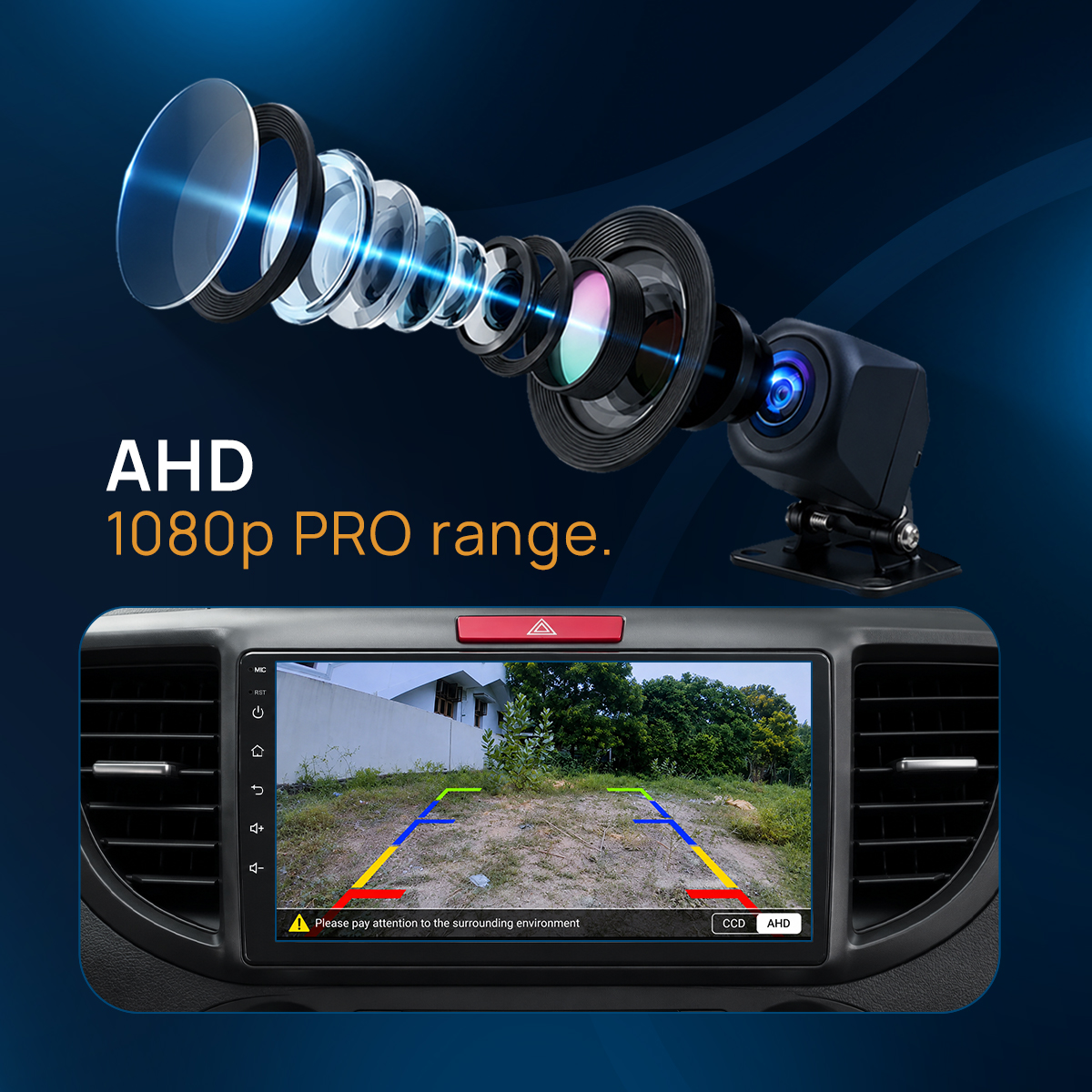

- 1080p AHD Video Output: High-definition 1280 × 1080 resolution at 30FPS for clear and detailed images.
- Dual Video Format Support: Default 1080p AHD output with optional CVBS NTSC compatibility via the integrated white jumper cable.
- Adjustable Parking Guide Lines: Easily enable or disable fixed distance parking lines using the integrated green jumper cable.
- Easy Signal Adjustment: Jumper-controlled configuration allows the camera signal to be changed to suit compatible display systems.
- 150° Wide Viewing Angle: Provides a broader rear view compared with conventional 100°–120° cameras.
- SMARTSENS SC1345 CMOS Sensor: Delivers improved image quality and enhanced low-light and night-time performance.
- High-Quality 14mm Lens: Designed for sharp and reliable image capture.

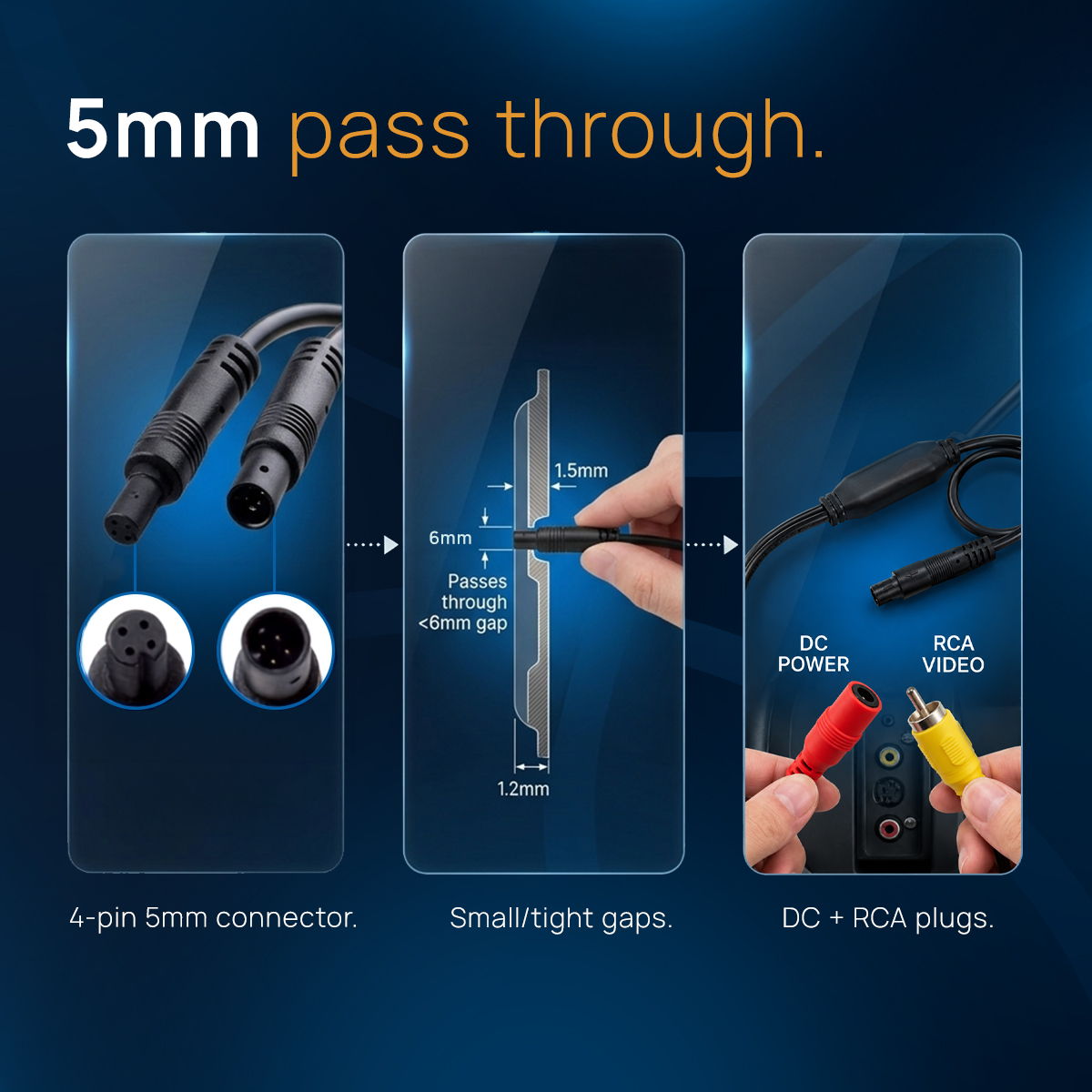

- 5mm 4-Pin Passthrough Connection: The camera uses a compact 4-pin connection before adapting to standard RCA video and DC power connections, helping maintain a neat installation.
- IP68X Waterproof Rating: Designed to withstand rain, road conditions and vehicle washing. Direct pressure washing is not recommended.
- UKCA, CE, ROHS & e-Mark Compliant: Manufactured to recognised safety and environmental standards.
- Complete Installation Wiring: Supplied with an 8m double-shielded RCA video cable incorporating trigger and DC power wiring.
- Trade Preferred: The ATD PRO camera range has been trusted by professional installers for over a decade.
FITMENT LIST
This product is for universal fitment as it is supplied with a universal hanging bracket.
FITMENT NOTES:
- The camera operates on a +12V system (requiring 13–15V for a stable image).
- Vehicles with CANBUS systems may experience PWM voltage fluctuations on the reverse light power supply. In such cases, a relay is required to ensure proper voltage regulation. We offer CCA‑18123 or CCA‑18510 relays as solutions (sold separately).
- Please ensure your display supports AHD 1080p (30fps) or NTSC CVBS input formats before purchase. This will NOT work directly with any factory‑fitted monitors or head units. You will require an interface (if available) adaptor for a factory head unit to accept an aftermarket rear‑view camera.
