MAIN FEATURES

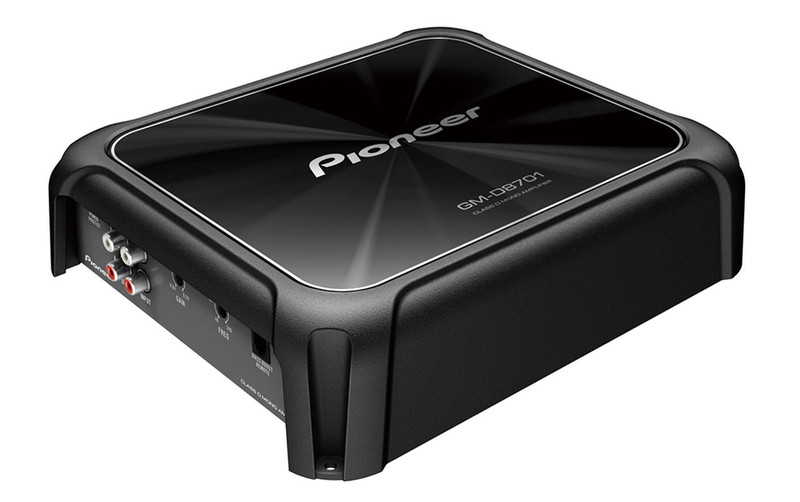

High-Efficiency Bass Power with Pioneer GM-D8701 Mono Class-FD Amplifier
The Pioneer GM-D8701 is a compact mono Class-FD car amplifier designed to deliver strong, efficient, and clean bass performance for subwoofer systems. With advanced Class-FD digital technology, it provides high output power while maintaining low heat generation and improved energy efficiency, making it ideal for modern car audio installations.
Delivering up to 1600W maximum power, the GM-D8701 supports stable operation down to 1-ohm loads, allowing flexible subwoofer configurations. It includes a built-in low pass filter and a remote bass boost controller for precise bass adjustment on the go. Its high signal-to-noise ratio and low distortion ensure clean, accurate, and powerful bass reproduction.
SPECIFICATIONS:
- Amplifier Type: Class-FD Digital Mono Amplifier
- Channels: 1-Channel (Mono)
- Maximum Power Output: 1600 W
- Continuous Output Power:
- 300 W × 1 (4 Ω)
- 500 W × 1 (2 Ω)
- 800 W × 1 (1 Ω)
- Frequency Response: 10 Hz – 240 kHz
- Total Harmonic Distortion (THD): < 0.05%
- Signal-to-Noise Ratio: > 100 dB
- Load Impedance Capability: 1–8 Ω
- Low Pass Filter: Yes
- Bass Boost: Yes (Remote Bass Boost Controller Included)
- Speaker Terminals: Block-Type
- Multi Block Terminal: Yes
- Dimensions: 252 mm (W) × 60 mm (H) × 215 mm (D)
