ACV 621300-25-2 Double DIN HU Fitting Installation Kit For Toyota Yaris XP13 In Black (2012-2020)

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

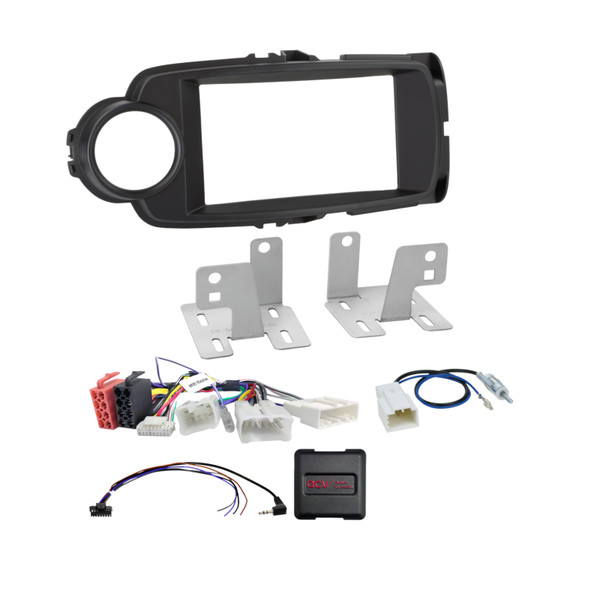

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• Toyota Yaris (XP13) 10/2011 – 08/2014
• Toyota Yaris (XP13) 09/2014 – 03/2017
• Toyota Yaris (XP13) 04/2017 – 02/2020

Products:

• Colour: Black
• Head Unit Display Cut-Out: 172 mm × 98.5 mm
• System Type: Analog Vehicle
• Radio bezel note: Vehicles from 09/2014 onwards may not provide a perfect form fit in the dashboard curves

Connection Types

• 10-Pin / 6-Pin / 28-Pin Toyota connector – Main vehicle interface
• OEM SWC → 3.5 mm Jack / Loose Wire – Steering wheel control connection
• OEM Antenna Toyota GT13(F) → DIN(M) – Radio antenna adapter
• Blue: +12 V Antenna Remote Output




Provided Signals

• Red: +12 V Ignition (via OEM interface)
• Blue: +12 V Antenna Remote Output
• Steering wheel remote control signals via multi-lead interface

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Some vehicle settings
- Some vehicle information displays
- High‑beam assist
- Driver assistance system functions
- Start/Stop system adjustment
- Trailer Assist, eCall, or other driver assistance systems

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Vehicles equipped with Matsushita or Fujitsu Ten OEM head units
• Vehicles with compatible Toyota 10-pin / 6-pin / 28-pin connectors
• Vehicles without conflicting factory multimedia systems




Important Installation Notes

1. Compare the connectors shown with those in your vehicle to ensure correct fitment.
2. Check whether one of the listed OEM head units was originally installed.
3. Confirm vehicle functions, settings access, and steering wheel control operation before final assembly.
4. Reimported vehicles or vehicles with different software versions may show reduced compatibility.
5. Follow the DIP switch instructions for the retrofit head unit manufacturer (see manual).
6. All wiring connections or modifications must be carried out by trained specialists only.
7. Test steering wheel controls, antenna power, and other integrated functions before completing installation.
