MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:

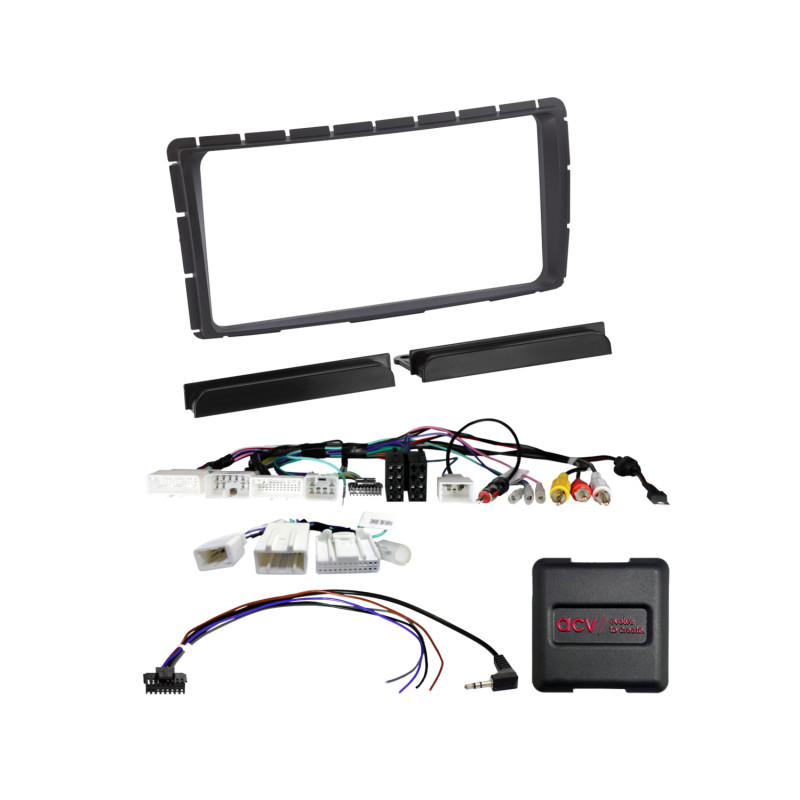

- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Toyota Hilux [N25] (2011–2016)
Products:
- Colour: Black
- Head Unit Display Cut-Out: 202 mm × 98 mm
- System Type: Analog Vehicle
- Radio bezel note: Vehicles with different software or imported variants may be incompatible in some functions
Connection Types
- 28-Pin Toyota connector – Main vehicle interface
- OEM SWC → 3.5 mm Jack / Loose Wire – Steering wheel control connection
- OEM Antenna GT13(F) → DIN(M) – Radio antenna adapter
- OEM Camera 24-Pin → RCA(M) Yellow – Camera input
- OEM Camera Adapter 16-Pin → 24-Pin
- OEM USB → USB-A
- OEM AUX → RCA(M) Red/White
- Blue: +12 V Antenna Remote Output
- Camera Power Supply: +6 V
Provided Signals
- Red: +12 V Ignition (via OEM interface)
- Blue: +12 V Antenna Remote Output
- Steering wheel remote control signals via multi-lead interface
- Camera, USB, and AUX signals depending on OEM connection
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Some vehicle settings
- Some vehicle information displays
- High‑beam assist
- Driver assistance system functions
- Start/Stop system adjustment
- Trailer Assist, eCall, or other driver assistance systems
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles equipped with Matsushita / Fujitsu Ten OEM head units
- Vehicles with or without reversing camera
- Vehicles without 360° camera system
- Vehicles with compatible Toyota connectors and no conflicting multimedia system
Important Installation Notes
- Check connector pinouts carefully to avoid malfunctions.
- Confirm vehicle functions, settings access, and steering wheel control operation before final assembly.
- Reimported vehicles or vehicles with different software versions may show reduced compatibility.
- Follow DIP switch instructions for the retrofit head unit manufacturer (see manual).
- All wiring connections or modifications must be carried out by trained specialists only.
- Test steering wheel controls, camera, antenna power, USB, AUX, and other integrated functions before completing installation.
