MAIN FEATURES

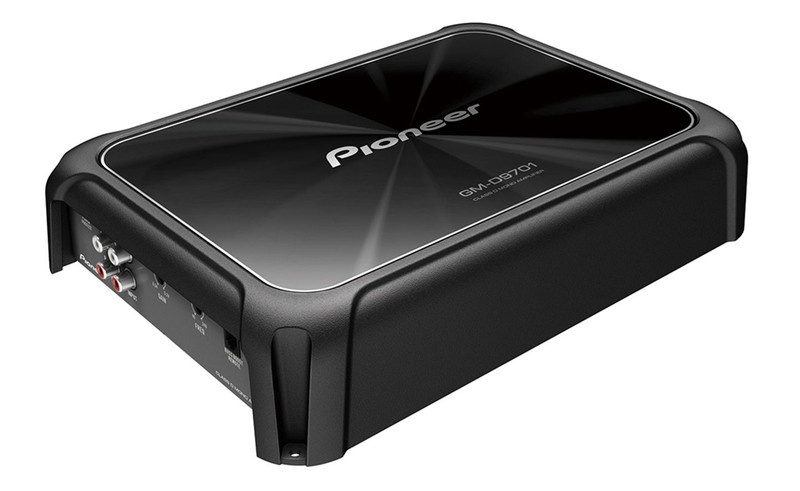

Maximum Bass Power with Pioneer GM-D9701 Mono Class-D Amplifier
The Pioneer GM-D9701 is a high-performance mono Class-D car amplifier engineered to deliver exceptional power and efficiency for demanding subwoofer systems. With a maximum output of 2400W, it provides clean, powerful bass while maintaining excellent energy efficiency and low heat generation thanks to Pioneer’s advanced Class-D amplifier technology.
Designed for serious bass enthusiasts, the GM-D9701 features stable 1-ohm operation, a built-in Low Pass Filter, and an included remote Bass Boost controller for convenient on-the-fly bass adjustment. Its high signal-to-noise ratio and ultra-low distortion ensure clean, accurate sound reproduction, while the compact chassis allows for flexible installation in a wide range of vehicles.
SPECIFICATIONS:
- Amplifier Type: Class-D Digital Mono Amplifier
- Channels: 1-Channel (Mono)
- Maximum Power Output: 2400 W
- Continuous Output Power:
- 500 W × 1 (4 Ω)
- 800 W × 1 (2 Ω)
- 1200 W × 1 (1 Ω)
- Frequency Response: 10 Hz – 240 kHz
- Total Harmonic Distortion (THD): < 0.05%
- Signal-to-Noise Ratio: > 100 dB
- Load Impedance Capability: 1–8 Ω
- Low Pass Filter: Yes
- Bass Boost: Yes (Remote Bass Boost Controller Included)
- Speaker Terminals: Block-Type
- Multi Block Terminal: Yes
- Dimensions: 302 mm (W) × 60 mm (H) × 215 mm (D)
