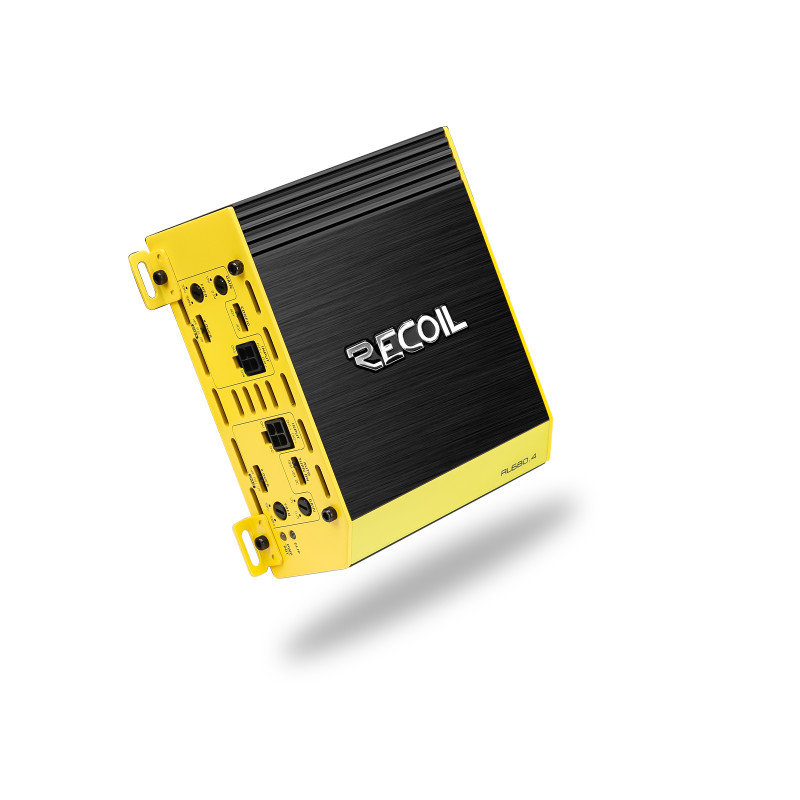

Recoil RL680.4 Full-Range Class-D 4-Channel Car Audio Amplifier 680 Watts RMS 170 Watts
Recoil
- SKU:
- RECOIL-RL680.4
Write a Review
Recoil
Recoil RL680.4 Full-Range Class-D 4-Channel Car Audio Amplifier 680 Watts RMS 170 Watts
- Full-range Class-D 4-channel amplifier
- High-efficiency compact design
- Advanced 4-way protection circuitry
- Built-in HPF and LPF crossovers
- Ideal for complete speaker system upgrades
Related Items
Related Products
-
Description
Recoil RL680.4 Full Range Class-D 4-Channel Amplifier – 680 Watts
Recoil’s RL680.4 is a compact, efficient, and highly reliable full-range Class-D 4-channel amplifier designed to deliver clean, powerful audio across your entire speaker system. Ideal for aftermarket car audio upgrades, this amplifier provides balanced output with low distortion, making it perfect for driving front and rear speakers with clarity and control.
Featuring built-in crossovers, precise gain control, and advanced protection circuitry, the RL680.4 ensures stable performance under demanding conditions. Its ultra-compact chassis allows easy installation in tight spaces, while high-efficiency design keeps heat under control during extended listening sessions.
Key Features:
- 4-channel full-range Class-D amplifier delivering up to 680W of peak power
- RMS power @2Ω: 170W x 4 channels (14.4V)
- RMS power @4Ω: 95W x 4 channels (14.4V)
- RMS power (bridged) @4Ω: 250W x 2 channels (14.4V)
- 4-way protection circuit: Thermal, Voltage, Speaker, DC
- Operating voltage: 9V–16V for broad vehicle compatibility
- Idling current: 750mA for efficient operation
- Frequency response: 20Hz–35kHz for full-range clarity
- Signal-to-noise ratio: 89.9dB for clean audio output
- THD+N: 0.16% for low distortion performance
- Input sensitivity (low level): 220mV–12V
- Adjustable low-pass crossover: 30Hz–300Hz
- Adjustable high-pass crossover: 30Hz–300Hz
- Clip indication: 1% for performance monitoring
- Fuse rating: 35A for system protection
- Compact dimensions: 3.97″ x 4.92″ x 2″ (108mm x 125mm x 51mm)
Ideal for powering full-range speaker systems in vehicles where clean, detailed sound and reliable performance are required in a compact installation.
-
