ACV 611320-24-1 Single DIN HU Fitting Installation Kit For SEAT Mii Skoda Citigo VW Up (2011-2016)

MAIN FEATURES

ACV – Premium Quality Installation Components

Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.

Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.

This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.

Note: Before installation, please review the compatibility notes for each component.

Features:

• Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
• SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
• Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
• Plug and Play Install - The components provided are designed to make the installation as easy as possible.

Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.

Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.

VEHICLE COMPATIBILITY LIST

This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.

Designed For:

• SEAT Mii (2011-2016)
• Skoda Citigo (2011-2016)
• VW Up! (2011–2016)

Products:

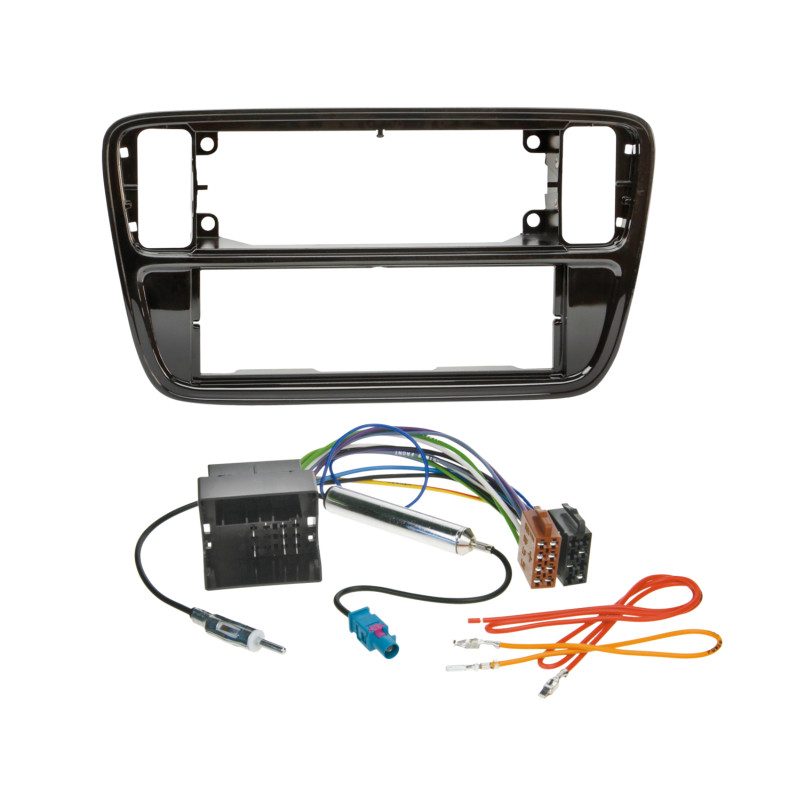

• Colour: Piano Black
• Head Unit Display Cut-Out: 1-DIN
• System Type: Passive radio connection
•

Connection Types

• 40-pin Quadlock VAG connector – Passive vehicle interface
• OEM antenna Fakra (male) → DIN (male) – Antenna adapter
• Red wire: +12V ignition current, terminal 15, fused at fuse box
• Orange wire: +12V lighting/dimmer terminal 58, fused at fuse box

Provided Signals

• Red: +12V Ignition terminal 15
• Orange: +12V Illumination / dimmer terminal 58

Supported / Not Supported Functions

Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.

- Passive connection only – some vehicle functions and settings may not be supported
- Steering wheel remote control, camera, hands-free system, and antenna phantom power may require additional wiring and configuration

OEM Head Unit Compatibility Notes

This kit is suitable for:

• Vehicles with factory 1-DIN or compatible VW Up! head units
• Passive connection kits require checking the OEM connector type and visual match



Important Installation Notes

1. Verify all OEM device functions before installation
2. Disconnect OEM device while power is off
3. Configure interface settings and hardware while de-energized
4. Connect the radio connection cable according to the retrofit device instructions
5. Connect all other connections according to retrofit device instructions
6. Connect the entire system to the vehicle with live connection last
7. Configure interface software and retrofit head unit according to instructions (steering wheel remote control, camera, hands-free system, antenna phantom power, etc.)
8. Test vehicle functions before final installation
9. Any wiring modifications, alternative connections, or cable extensions must be carried out by trained specialists
10. Incorrect installation may void warranty or affect vehicle systems
