VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Skoda Yeti (5L) 10/2013 – 07/2017*
- VW Caddy IV (DU) 06/2015 – 09/2020
- VW Jetta (16) 2015 – 2018
- VW Sharan II (7N) 07/2015 – 10/2021
- VW T6 (7HC) 07/2015 – 08/2019**
Products:
- Colour: Black
- Head Unit Display Cut-Out: 172 mm × 98.5 mm
- System Type: CANBUS Vehicle

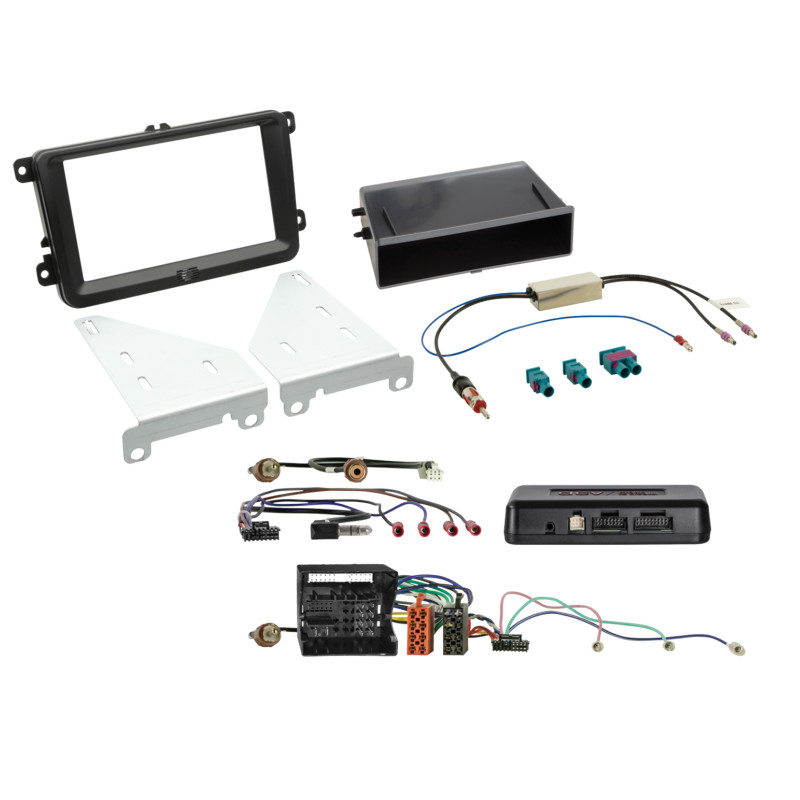

- 2-DIN radio bezel with compartment (Seat/Skoda/VW) – Item: 281320-30-1
- i-adapter Skoda/VW 52-Pin Quadlock Multilead – Item: 43xvw03
- Antenna adapter Fakra (m)(Set) > DIN (m) 12V Phantom LEONI loose – Item: 1524-70-1-0
Connection Types
- 52-Pin Quadlock VAG connector – Main vehicle interface
- OEM steering wheel remote control → 3.5 mm jack / loose cable
- OEM antenna Fakra (m) (set) → DIN (m)
- OEM reversing camera → RCA (m) ochre
- USB-A extension – Software update interface for the retrofit head unit
Provided Signals
- Red: +12V Ignition Terminal 15
- Orange: +12V Lighting Terminal 58
- Purple/White: +12V Reverse Signal
- Pink: Speed Signal
- Green: Ground (Handbrake Signal)
- Blue: +12V Antenna Remote Output
Rear‑View Camera Integration
- Activate and configure the rear-view camera input in the retrofit head unit.
- i-Dapter Connections:
- Purple/White: +12V Reverse Signal
- RCA (M) Ochre: Camera Input to Retrofit HU
- If the camera image or i-Dapter visualization does not appear:
Add an additional GND connection to the outer shield of the RCA cable (camera side and HU side). - i-Dapter Settings: Press and hold the Track Up or Track Down steering wheel button to access settings.
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Some vehicle settings
- Some vehicle information displays
- High‑beam assist
- Driver assistance system functions
- Start/Stop system adjustment
- E-Call not supported
- Vehicles with OEM MOST sound system, radio preparation, or without factory pre-installation may not be supported
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles originally equipped with UConnect / Continental Mopar OEM head units
- Vehicles without the 7" OEM display
- Vehicles with OEM rear-view camera wiring:
- Pin 31: Video + (Red)
- Pin 32: Video – (White)
- Pin 33: Shield (Black)
- Skoda OEM Bezel: Part Number 5L0858069L1 QB
Important Installation Notes
- Compare the adapter connectors with those in your vehicle to ensure correct fitment.
- Check whether one of the listed OEM head units was originally installed.
- Confirm vehicle functions, settings access, and SWC operation before final assembly.
- Reimported vehicles or vehicles with different software versions may show reduced compatibility.
- Follow DIP switch instructions for both OEM device and retrofit head unit manufacturer (see manuals).
- For vehicles with MIB-PQ platform, check OEM antenna supply voltage before installation.
- Scope of delivery includes radio bezel, i-adapter, and antenna adapter; optional INBAY® storage compartment available.
- All connections, changes, or modifications must be performed by trained specialists. Incorrect installation may void warranty and functionality.
