MAIN FEATURES
ACV – Premium Quality Installation Components
Many modern vehicles are equipped with manufacturer‑specific head units designed to match the dashboard’s original appearance. ACV installation kits provide all the essential components required to replace an OEM head unit with an aftermarket system.
Depending on the vehicle’s specification, the kit may include the necessary adapters and interfaces to ensure correct operation of the new unit and to retain supported vehicle functions.
This ACV installation kit is to provide you with the basic installation products required to complete a new radio installation into your vehicle.
Note: Before installation, please review the compatibility notes for each component.
Features:
- Complete Installation Solution – Includes the components required to replace the factory head unit with a compatible aftermarket model. Comes with fascia, SWC interface and antenna adaptor.
- SWC Connector Kits – Supplies all necessary analogue steering wheel control signals for operating a retrofit head unit.
- Vehicle‑Specific Adaptation – Components vary depending on the vehicle’s equipment level and the functionality of the chosen aftermarket unit.
- Plug and Play Install - The components provided are designed to make the installation as easy as possible.
Note: OEM Function Awareness – Some vehicle functions or settings may not be supported by the retrofit head unit. Check the original OEM head unit, vehicle settings, and available functions before installation.
Final System Check – Confirm vehicle functionality, settings access, and steering wheel control operation before completing the installation.
VEHICLE COMPATIBILITY LIST
This kit has been put together for the following vehicles, depending on the factory fitted head unit. See notes for important information regarding this.
Designed For:
- Skoda Octavia (1Z) 01/2009 – 03/2013*
- Skoda Rapid (NH) 10/2012 – 04/2015**
- Skoda Rapid (NH) 04/2015 – 05/2017**
- Skoda Rapid (NH) 05/2017 – 02/2019**
- Skoda Roomster (5J) 06/2010 – 02/2015
- Skoda Superb (3T) 07/2008 – 05/2013***
- Skoda Superb (3T) 06/2013 – 05/2015***
- Skoda Yeti (5L) 08/2009 – 10/2013****
- Skoda Yeti (5L) 10/2013 – 07/2017****
VW
- VW Caddy IV (DU) 06/2015 – 09/2020
- VW Caravelle (7H) 09/2009 – 05/2015
- VW CC (3C/35) 02/2012 – 08/2016
- VW EOS (1F) 10/2010 – 04/2015
- VW Golf VI (1K) 11/2008 – 09/2012
- VW Golf VI (1KM) 11/2009 – 04/2013
- VW Golf VI Plus (1KP) 03/2009 – 01/2014
- VW Multivan (7H) 09/2009 – 05/2015
- VW Passat B7 (3C/362) 11/2010 – 10/2014
- VW Polo V (6R) 06/2009 – 01/2014
- VW Scirocco III (13) 08/2008 – 04/2014
- VW Sharan II (7N) 08/2010 – 04/2015
- VW Sharan II (7N) 07/2015 – 10/2021
- VW Tiguan I (5N) 06/2011 – 04/2016
- VW Touran I (1T) 08/2010 – 04/2015
- VW T5 Transporter (7H) 09/2009 – 05/2015
- VW T6 (7HC) 07/2015 – 08/2019*****

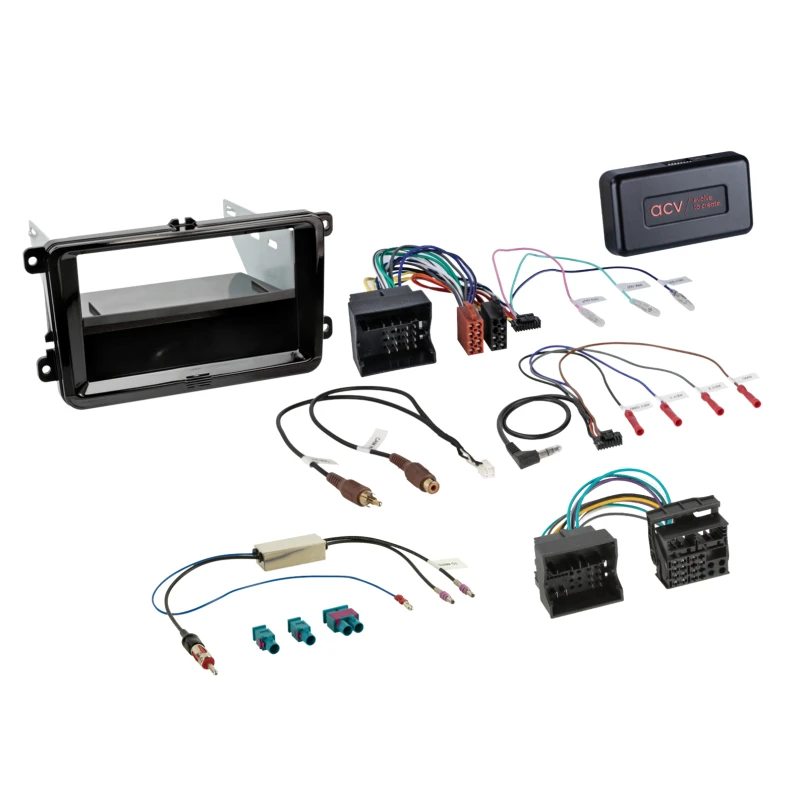

Products:
- 2-DIN / 2-ISO radio fascia with storage compartment, piano black
- Radio display installation cut-out: 172 mm × 98.5 mm
- i-dapter interface radio connection kit
- CAN Bus integration system
- Steering wheel remote control interface
- Antenna adapter Fakra (M) → DIN (M) with 12V phantom power
Connection Types
- 40-pin VAG Quadlock connector – main vehicle interface
- 52-pin Quadlock VAG → 40-pin Quadlock adapter connection
- OEM Steering Wheel Remote Control → 3.5 mm Jack / Loose Wire
- OEM Antenna Fakra (M) (set) → DIN (M)
- RCA (M) camera input connection via i-dapter
Provided Signals
- Red: +12V Ignition Terminal 15
- Orange: +12V Illumination Terminal 58
- Purple/White: +12V Reverse Signal
- Pink: Speed Signal
- Green: Ground / Handbrake Signal
- Output load capacity: max. 250 mA
- Higher current (>250 mA) requires relay resistance 75–150 Ω
Rear‑View Camera Integration
- Activate and configure the reversing camera input in the retrofit head unit menu.
- i-Dapter connections:
- Purple/White: +12V Reverse Signal
- RCA (M) Ochre: Camera input to retrofit device
- Camera image or i-Dapter visualization not available:
- Connect an additional ground contact to the RCA outer conductor at the camera and device connection
- Vehicles with OEM reversing camera may require:
- Reversing camera interface Seat/Skoda/VW OEM HIGH → Item: 771324-1032
- Reversing camera interface Seat/Skoda/VW OEM LOW → Item: 771324-1036
Supported / Not Supported Functions
Depending on vehicle equipment, software version, and the retrofit head unit, some functions may not be available.
May Be Limited or Not Supported.
- Depending on vehicle equipment, software version, and retrofit head unit, some functions may not be available
- Not all vehicle settings supported
- Not all vehicle functions supported
- Not all vehicle information visualised
- E-Call system not supported
- Vehicles with E-Call may require E-Call maintenance interface: MAN/Seat/Skoda/VW 52-Pin Quadlock → Item: 1424-28
- Not suitable for vehicles with OEM MOST sound system
- Not suitable for vehicles with radio preparation only
- Not suitable for vehicles without factory pre-installation (steering wheel control / speakers / radio)
OEM Head Unit Compatibility Notes
This kit is suitable for:
- Vehicles with 40-pin Quadlock:
- White OEM FIS display in instrument cluster
- Vehicles with / without OEM sound system
- Vehicles with 52-pin Quadlock:
- MIB-PQ platform vehicles
- Supported OEM units:
- Skoda Audience / Stream OEM unit
- Skoda Amundsen / Columbus OEM navigation
- VW RCD310 / RCD500 / RCD510 OEM radios
- VW RNS315 / RNS510 OEM navigation
Important Installation Notes
- Compare all adapter connectors with the vehicle connectors before installation
- Verify OEM device functions and vehicle menu settings before removal
- Remove OEM device with the power off
- Check all interface connections for correctness and continuity
- Configure interface hardware and DIP switch settings according to the retrofit device manufacturer
- Connect the radio harness according to aftermarket device instructions
- Connect all remaining adapters and interfaces as instructed
- Connect the vehicle power supply last
- Configure interface software and i-dapter settings according to operating instructions
- Configure steering wheel control, camera, and antenna phantom power settings in the retrofit device
- Perform full function test after installation
